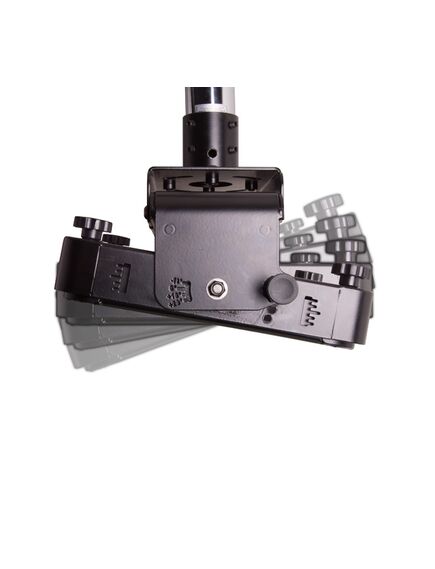

BT893/B Heavy Duty Projector Ceiling Mount, Black
Please sign in so that we can notify you about a reply
Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.
Features- Designed to mount heavy duty projectors to the ceiling
- Features easy, incremental tilt adjustment
- Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
- Ideal for use with projection mapping projectors
- Quick and easy assembly
- Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole
- Optional extension legs can be used to accommodate larger fixing patterns
- Suitable for projectors using M6, M8, M10 and M12 fixings
- All mounting hardware included
Brand:
B-Tech AV Mounts
Specifications
Product Type:
Heavy Duty Projector Ceiling Mount
Pole Diameter:
5cm
Tilt Angle:
-10 to +20° (±5° Micro-Adjustment)
Yaw Angle:
25° (Ceiling Mounted), 45° (Pole Mounted)
Roll Angle:
±5°
Maximum Distance:
87.3cm (Between Fixings), 61.8cm (Square Fixing Pattern)
Colour:
Black
Includes:
Extension Legs, All Mounting Hardware
Performance
Load Capacity:
70kg
Dimensions
Width:
26.2cm
Shipping Weight:
11.5kg
