BT893-FD150/BB Fixed Drop HD Projector Ceiling Mount, Black with Micro Adjustment - 1.5m (Pole Length)
Please sign in so that we can notify you about a reply

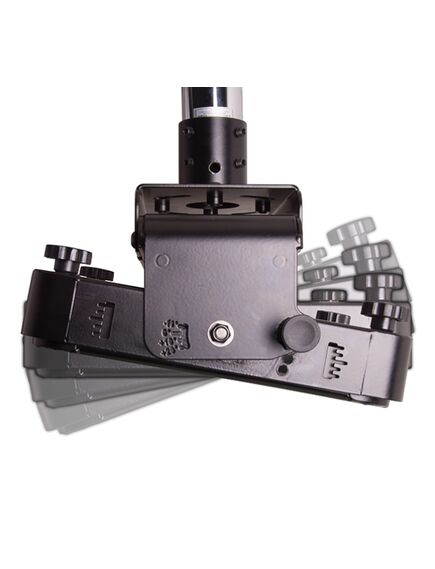

Designed to mount projectors up to 70kg from the ceiling, the BT893-FD heavy duty projector is available in a range of fixed ceiling drop lengths and features an adjustable ceiling plate for use with angled ceilings. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.
Features- Designed to mount heavy duty projectors from the ceiling
- Features easy, incremented tilt adjustment
- Extendable mounting plate features 4-point micro-adjustment for perfect alignment of the projected images
- Micro-adjustment is altered using thumbwheels for better grip and a more controlled adjustment
- Quick and easy assembly
- Adjustable ceiling plate suitable for angled ceilings
- Optional extension legs can be used to accommodate larger fixing patterns
- Ø50mm pole is internally unobstructed for cables to pass through easily
- Suitable for projectors using M6, M8, M10 and M12 fixings
Brand:
B-Tech AV Mounts
Specifications
Product Type:
Fixed Drop Heavy Duty Projector Ceiling Mount
Pole Diameter:
5cm
Pole Length:
150cm
Tilt Angle:
-10 to +20° (±5° Micro-Adjustment), 90° (Ceiling Plate)
Yaw Angle:
±45°
Roll Angle:
±5°
Maximum Distance:
87.3cm (Between Fixings), 61.8cm (Square Fixing Pattern)
Colour:
Black
Includes:
Extension Legs
Performance
Load Capacity:
70kg
Dimensions
Width:
20cm
Depth:
7.1cm
Height:
120.6cm
