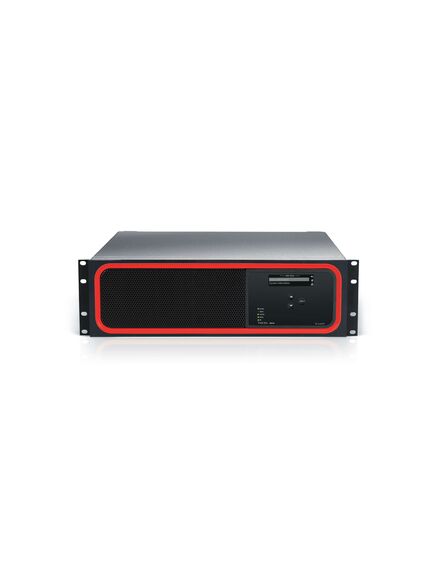

Tesira SERVER Configurable i/o Dsp, Ethernet Port, Fourty Eight Channel
Please sign in so that we can notify you about a reply
The Tesira SERVER is a digital network server. It is factory configured with one DSP-2 card and can accept up to a total of eight DSP-2 cards. The SERVER is also factory configured with one AVB-1 card and has a second slot that can be outfitted with an additional AVB-1 card, a 32 x 32 channel SCM-1 CobraNet card, a 64 x 64 channel DAN-1 Dante™ card, or a standard I/O card for four channels of local I/O. The SERVER is the core of a Tesira digital audio system and can be used with Tesira expanders to form a highly scalable audio network. Tesira SERVER supports primary and secondary redundant media network connections to provide resilient audio streaming. If the primary media network experiences downtime, the secondary connection takes over with no loss of continuity.
Features- Supports up to 8 DSP-2 cards
- Up to 420 x 420 channels of digital I/O over AVB
- Supports optional 32 x 32 CobraNet audio networking
- Supports optional 64 x 64 Dante audio networking
- System configuration and control via Ethernet or serial connection
- Front panel OLED display for device and system information
- SpeechSense™ and AmbientSense™ processing algorithms
- Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
- Rack mountable (3RU)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Brand:
Biamp
Specifications
Product Type:
Configurable i/o Dsp
Inputs and Ports
Port Type:
Ethernet
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
FCC Part 15B, FCC Part 68, Industry Canada CS-03, CE Marked, UL and C-UL Listed, RCM, EAC, RoHS Directive
Dimensions
Length:
43.2cm
Width:
48.3cm
Height:
13.3cm
Weight:
8.2kg
