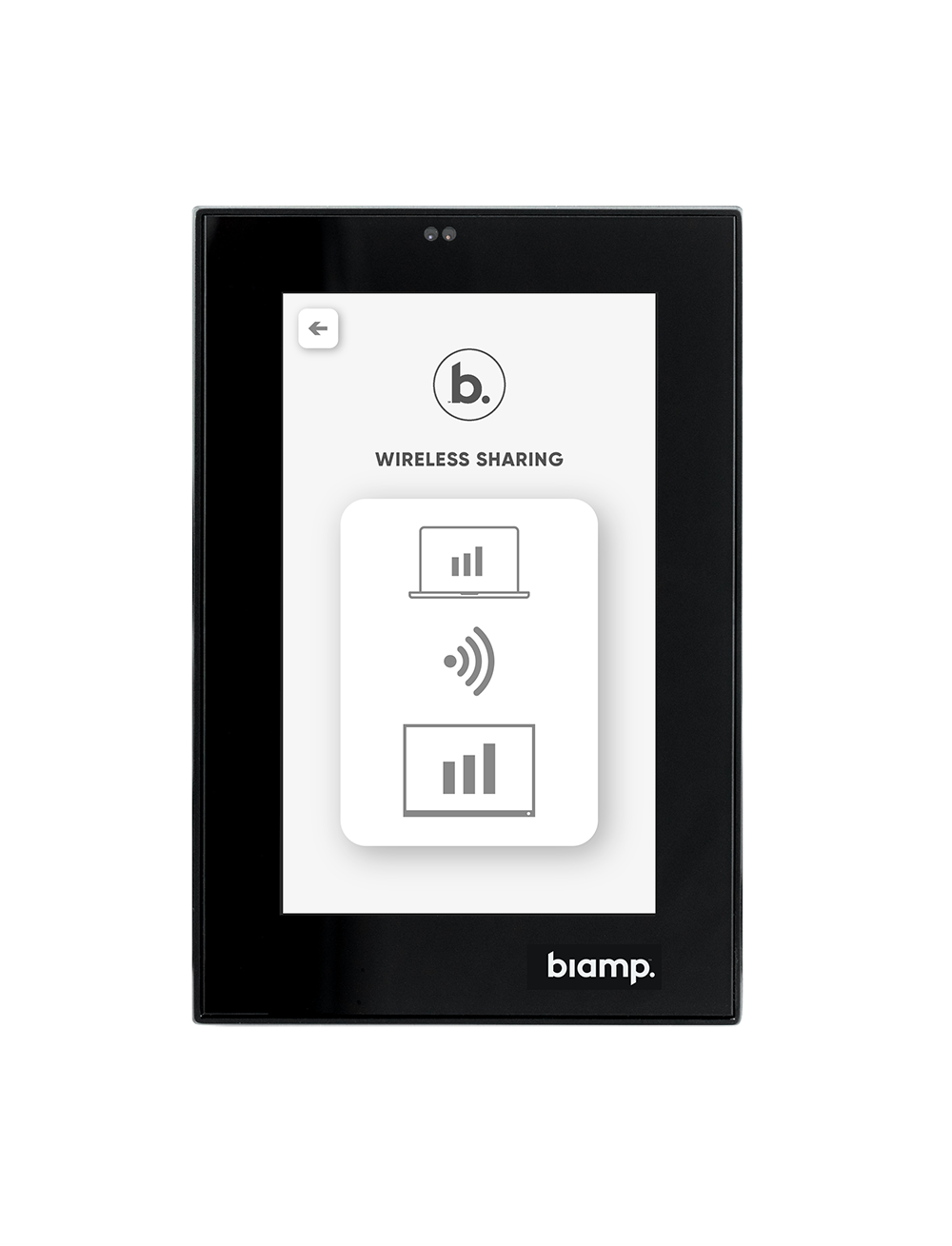

Apprimo Touch 4 Touch Panel, High-Contrast Capacitive Touch, 4" Display, LCD, Black
Please sign in so that we can notify you about a reply
The Apprimo Touch 4 is a 4” touch panel intended for smaller rooms. Similar in size to a smartphone, the Apprimo Touch 4 feels familiar and intuitive to use. It is PoE powered and includes PIR sensors that turn the screen on automatically and adjusts the screen brightness based on the ambient light level of the room. The user interface is fully configurable with Project Designer software, which includes several themes and customizable templates to choose from. The Apprimo Touch 4 is operated by a separate Impera controller, allowing you to customize a solution that perfectly matches the customer requirements.
Features
- 4” capacitive touch LCD interface
- Scratch-resistant glass
- Several UI design templates and themes available in Project Designer software
- Customizable user interface to fit customers’ control requirements and corporate identity
- Fits standard single gang US, EU, and DK back boxes
- Screen turns on automatically as someone approaches
- Display brightness can adjust automatically to the ambient light level
- Magnetic wall plate for easy installation
- PoE powered (IEEE 802.3at Class 2, 7W) for simple, single CAT5e/CAT6 cable installation
- Firmware can be updated via mini USB port
- Covered by Biamp Systems’ five-year warranty
Brand:
Biamp
Specifications
Product Type:
Touch Panel
Display Size:
10.2cm
Display Type:
LCD
Touch Panel Type:
High-Contrast Capacitive Touch
Mounting Type:
Wall Mount
Colour:
Black
Humidity:
10 to 90% (Relative)
Operating Temperature Range:
+32 to +104°F
Includes:
Mounting Bracket and Screws, Ejector Pin, USB-OTG Adapter, Polishing Cloth
Performance
Display Resolution:
800x480pixels
Inputs and Ports
Number of Ports:
RJ45 with Ethernet Cable, Mini USB 2.0 Port, Proximity Ambient Light Sensor, PoE Power
Connectivity
Ethernet Port Type:
RJ45
Power
Voltage Rating:
48V
Power Source Type:
Power Over Ethernet (PoE)
Standards
Standards Met:
CE (Europe), RoHS Directive (Europe)
Dimensions
Length:
7.7cm
Width:
11.5cm
Height:
4.1cm
Weight:
160g
Shipping Weight:
0.3kg
