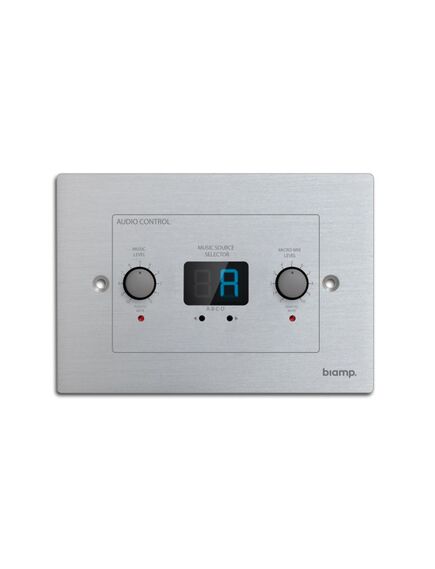

ZONE4R Remote Control Panel, 1xRJ-45 Connector, LED Indicator, White
Please sign in so that we can notify you about a reply
ZONE4R is a remote control panel for the ZONE4, Apart'smultifunctional 4-zone pre-amplifier.The control paneloffers music level control, source selection andmicrophone mix level control.A clear digital displaymakes it easy to monitor the functioning of the unit.The remote panels are easy to install, and are connectedto the ZONE4 by a standard CAT-5 cable (or higher).BothT-568A and T-568B cable terminations can be used.Themaximum approved CAT5 cable length is 100m per zone,according to circumstances.Mounting screws areincluded.A build-in box (BBi1) and surface mounted backbox (BB1) is available.The maximum ZONE4R control panels connected to asingle ZONE 4 pre-amplifier is 8 pieces in anyconfiguration (e.g.2 panels x 4 zones or 8 panels x 1 zoneor any other combination with a total of 8 panels).Youcan connect multiple ZONE4R units to the ZONE4 mainunit using the RJ45 split hub.Each controller has its unique network address.Please notethat the ZONE4R panels are unique to the ZONE4 four-zonepre amplifier and can't be used for controlling another pre-amplifier.ZONE4R cannot be linked to a PC and is notnetwork compatible!Addressing the control to a zone is very easy: by pushingthe music volume and microphone volume buttons for 5seconds, a zone indication will appear on the display.Usethe source selection buttons to assign the remote control tothe zone you want.After 5 seconds, the remote control canbe operated.Sophisticated but yet affordable: this remote control has allbasic controls, is easy to install and easy to use.
Brand:
Biamp
Specifications
Product Type:
Remote Control Panel
Display Type:
Two Digit LED
Touch Panel Type:
2 Digit LED Control Panel
Mounting Type:
Surface Mount
Control Type:
Music Level Control, Source Selection, Microphone Mix Level Control
Speaker Unit Type:
ZONE4
User Interface Indicator Type:
LED
Colour:
White
Includes:
Mounting Screw
Connectivity
Ethernet Port Type:
1xRJ45 Connector
Power
Power Source Type:
Phantom
Dimensions
Length:
11.4cm
Width:
4cm
Height:
8cm
Weight:
0.1kg
