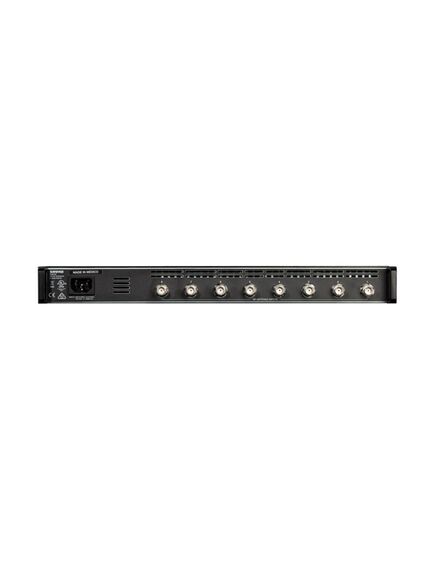

PA821B-UK Antenna Combiner, 470 to 865 MHz, UK Adapter, 8 Channel
Please sign in so that we can notify you about a reply
Eight-to-One Wideband PSM Antenna Combiner for all P3T, P9T and P10T Transmitters (470-865 Mhz).
Features
- Combines up to eight PSM transmitters to a single antenna set for improved RF networking & reduced rack clutter
- Wideband operation (470-865 MHz)
- Quieter fan for significant reductions in ambient unit noise - especially useful for installation work
- Temperature-sensitive fan power for significant reductions in ambient unit heat
- 8 Input LED Signals (green when active, off when inactive)
- LED indications of signal presence, signal overload
Brand:
Shure
Specifications
Product Type:
Antenna Combiner
Plug Type:
Uk
Power Rating:
143W
For Use With:
Shure IEM Wireless Personal Monitoring System
Operating Temperature Range:
-18 to 63°C
Includes:
8x55.8cm BNC Cables, 1x27.9cm BNC Jumper Cable, IEC Power Cord, 4x0.6m DC Output Power Jumper Cables
Performance
Impedance Rating:
50Ω (RF Input), 50Ω (DC Output)
Frequency Rating:
470 to 865MHz
Gain:
0dB@±2dB
Output Power Rating:
9.9W
Inputs and Ports
Number of Antenna Inputs/Outputs:
8 (RF Input)
Connector Type:
BNC (RF Input), BNC (DC Power Output)
Power
Output Voltage Rating:
15V DC
Output Current Rating:
660mA
Dimensions
Width:
40.1cm
Depth:
36.5cm
Height:
4.3cm
Weight:
4.8kg
