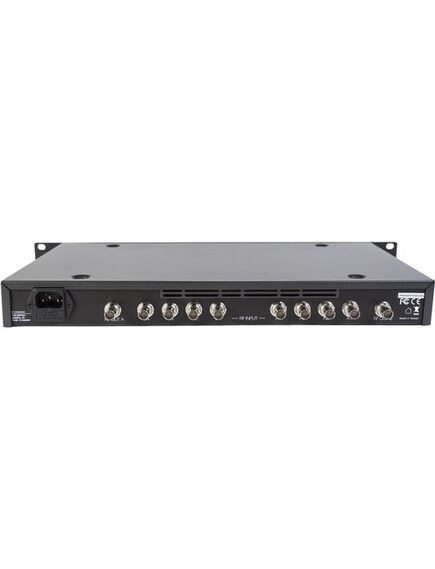

RFV-4ZONE-UK 4 Zone Antenna Combiner, 470 to 960 MHz, BNC, UK Adapter
Please sign in so that we can notify you about a reply
The 4 ZONE antenna combiner takes the complexity out of multi-zone wireless microphone projects. 4 ZONE combines together up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms.
For fine tuning RF levels in each coverage area, 4 ZONE provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.
With selectable ON/OFF inputs, 4 ZONE also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active as a live event or location sound project progresses, saving setup and breakdown time onsite.
When used in conjunction with up to four Diversity Fin Antennas and one or more DISTRO4 antenna distributors, 4 ZONE completes a turnkey package for any multi-zone wireless microphone project.
Features
- Antenna combiner for multi-zone wireless microphone systems – solves distribution challenges by making signal management simple
- 470 to 960 MHz frequency range, compatible across all brands
- Combines up to four separate pairs of diversity antenna connections to one A and B output
- Individual-channel, RF signal attenuation control down to -31 dB, in 1 dB steps
- Selectable 12 VDC power for active antennas and in-line amplifiers on long cable runs
- Selectable On/Off inputs allows for quick control of coverage zones for roaming microphone transmitters
Brand:
Shure
Specifications
Product Type:
Antenna Combiner
Plug Type:
Uk
Power Rating:
100 to 240V AC
For Use With:
Wireless Microphones Receiver
Includes:
1x4 Zone Antenna Combiner, 2x15cm BNC Jumper, 1xAC Power Cord
Performance
Impedance Rating:
50Ω (Input), 50Ω (Output)
Frequency Rating:
470 to 960MHz
Gain:
3dB
Inputs and Ports
Number of Antenna Inputs/Outputs:
8 (Input), 2 (Output)
Connector Type:
BNC
Power
Output Voltage Rating:
12V (In-Line Amplifier)
Output Current Rating:
200mA (In-Line Amplifier)
Dimensions
Width:
48cm
Depth:
26cm
Height:
4.5cm
