RFV-COMBINE8E Antenna Combiner, 407 to 608 MHz, BNC, EU Adapter
Please sign in so that we can notify you about a reply

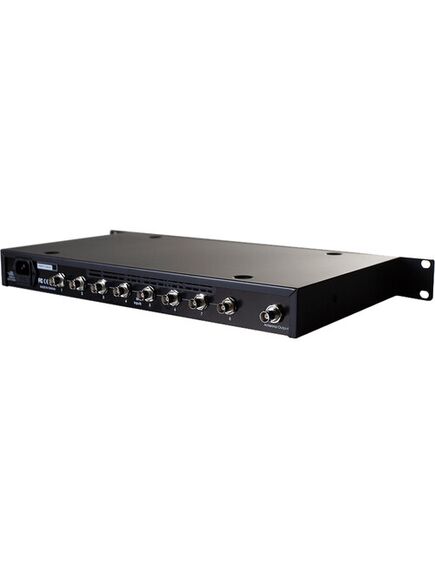

The RF Venue COMBINE8 enables you to actively combine signals from up to eight in-ear monitor (IEM) wireless transmitters into a single transmitting antenna. IEM transmitter combination for multi-channel systems greatly lowers the probability of intermodulation artifacts arising from multiple adjacent transmitters interfering with one another thus improving audio quality. The COMBINE8 can be used with any brand of IEM transmitter set to transmit at 50mW or less as well as any type of directional antenna. The rear panel houses eight BNC transmitter-input connectors and one BNC antenna output. An external DC power supply is included to provide DC power for up to eight IEM transmitters, removing the need for wall warts and reducing clutter.
Features- 8 IEM Transmitter Signals into 1 Antenna
- Any Brand IEM Transmitter 50mW or Less
- Any Type of Directional Antenna
- DC Power Supply for 8 Transmitters
Brand:
Shure
Specifications
Product Type:
Antenna Combiner
Plug Type:
EU
Power Rating:
36W
For Use With:
IEM (In-Ear Monitor) System
Performance
Frequency Rating:
407 to 608MHz
Gain:
0dB@±2dB
Inputs and Ports
Number of Antenna Inputs/Outputs:
8 (Input), 2 (Output)
Connector Type:
BNC
Dimensions
Width:
48cm
Depth:
26cm
Height:
4.5cm
Weight:
3.7kg
