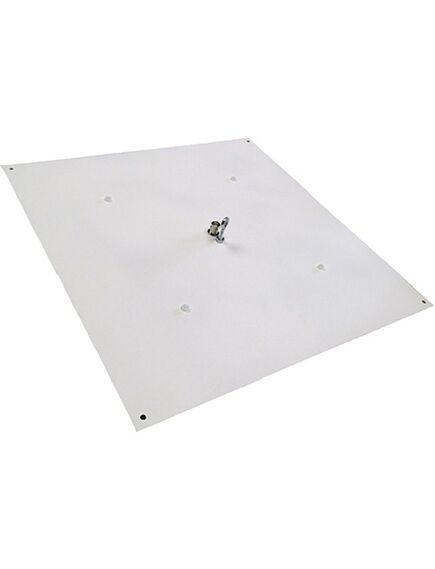

RFV-CX22 Ceiling Tile Antenna, BNC Female
Please sign in so that we can notify you about a reply
The CX-22 Antenna is an unobtrusive, near field antenna system designed to work with wireless microphones. It attaches easily to any standard 2' x 2' ceiling tile with the included hardware kit and blends in easily to any boardroom, classroom, or other drop-ceiling environment. Available with an optional junction box and in custom color-matched paint, the CX-22 Antenna has similar interference-mitigation characteristics to RFvenue's RF Spotlight, but in a more install-friendly form factor. It is particularly useful where many separate wireless systems are inter-operating across the facility and local field "spotlight" coverage is desired to maximize available spectrum and mitigate interference between rooms.
Features
- Frequency Range 470 - 698 MHz, + 216 MHz for Assisted Listening Transmit
- Hardware kit includes mounting screws, brackets, and safety wire loop
- Outer dimensions 14 x 14''
- Standard BNC coaxial cable connector
- Custom paint match available
- Junction box option
- Plenum rated coaxial cabling available in any length
Brand:
Shure
Specifications
Product Type:
Ceiling Tile Antenna
Special Features:
Includes Hardware Kit
Compatibility:
216 MHz Transmission Equipment
Maximum Operating Temperature:
40°C
Colour:
White
Minimum Operating Temperature:
-10°C
Includes:
Hardware Kit
Performance
Impedance Rating:
50Ω
Frequency Rating:
216MHz, 470 to 698MHz
Gain:
6dBd
Inputs and Ports
Connector Type:
BNC
Dimensions
Weight:
0.9kg
