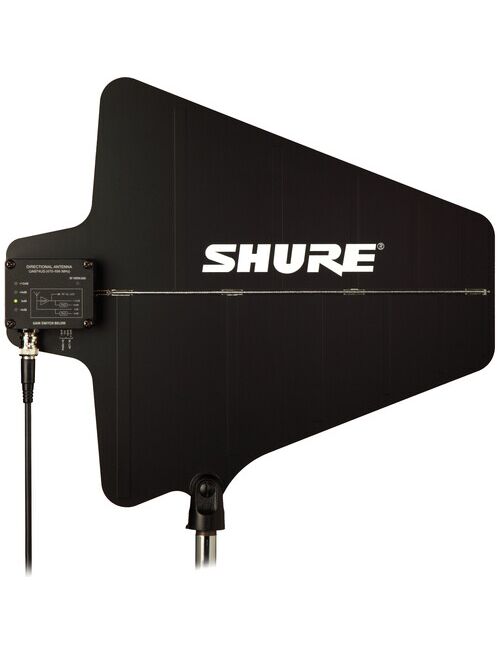

UA874WB Active Directional Antenna, Black
Please sign in so that we can notify you about a reply
Active directional UHF and VHF antenna delivers improved wireless signal reception with integrated amplification. Features include greater rejection of RF signals outside the coverage area and an integrated amplifier with 4 gain settings. UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard 1/2 wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss. The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
Features
- For Shure Receivers/Antenna Distribution
- Improve Wireless Signal Reception
- Wideband Frequency Range: 470 to 900 MHz
- Four-Position Gain Selector Switch
- Low-Noise Signal Amplifier
- Makes Up for Coaxial Transmission Loss
- Rugged Construction
- Mounts Easily to Microphone Stands
- Integrated Swivel Threaded Adapter
Brand:
Shure
Specifications
Product Type:
Active Directional Antenna
Special Features:
Integrated Threaded Adapter Mounts easily to Microphone Stands, Four-Position Gain Selector Switch, Shure Quality, Ruggedness, Reliability
Position:
4-Position
Compatibility:
Shure Wireless Receiver and Antenna Distribution System
Maximum Operating Temperature:
63°C
Colour:
Black
Minimum Operating Temperature:
-18°C
Includes:
Swivel Adapter Bracket
Performance
Impedance Rating:
50Ω
Frequency Rating:
470 to 900MHz
Gain:
±1dB (Signal Gain)
Inputs and Ports
Connector Type:
Female BNC
Power
Voltage Rating:
10 to 15V DC
Current Rating:
75mA
Standards
Standards Met:
CE
Dimensions
Width:
35.9cm
Depth:
3.6cm
Height:
31.6cm
Weight:
317g
