FC-102NET 2-Channel Dante Encoder & PoE Acceptor
Please sign in so that we can notify you about a reply

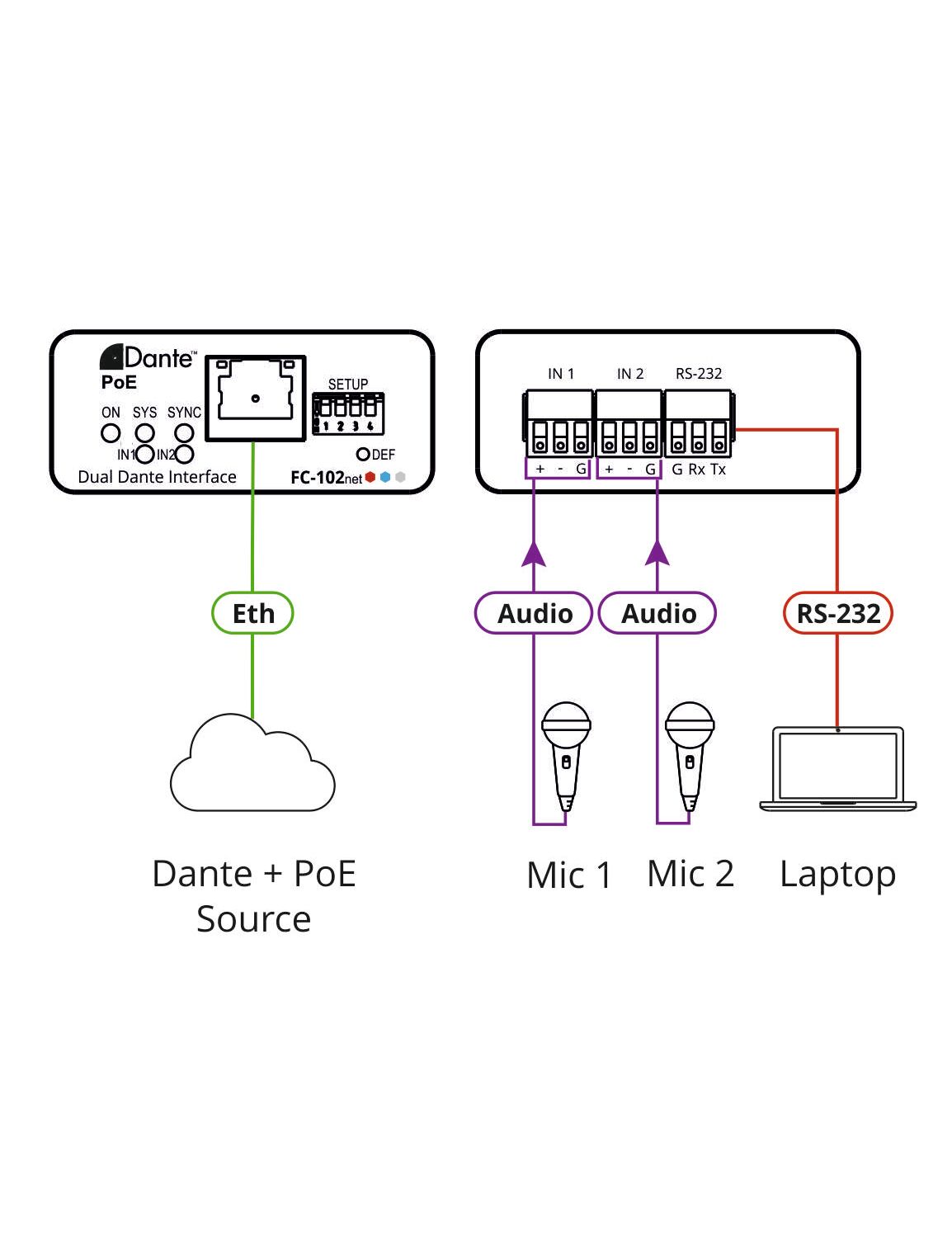

FC−102Net is a compact 2−channel Dante™ encoder with 2 balanced mono audio inputs that enables connecting non−Dante sources, such as microphones, laptops and players to a Dante network. It supports line level and microphone level sources and can provide 48V phantom power per input. FC−102Net is powered over Ethernet from any standard PoE providing network switch.
Features
- Dante Network Interface.
- PoE Acceptor.
- Interoperability - Supports AES67 and Dante allowing high-performance interoperability between IP-based audio networking systems.
- Input - 2 Dante channels on an RJ-45 connector.
- Outputs - 2 balanced mono audio on a 3-pin terminal blocks.
- Output Volume Control.
- Versatile Control - Via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection.
- Professional, Studio Grade Signal Conversion Technology - Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
- Easy Installation - Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
13-80534090
Specifications
Product Type:
Dante Encoder and PoE Acceptor
Control Type:
DIP-Switch, Reset Button
Special Features:
Versatile Control-Via the Dante IP Control Matrix and kramer Protocol 3000 Via RS-232 Connection, Interoperability-Supports AES67 and Dante Allowing High-Performance Interoperability Between IP-Based audio Networking Systems
Firmware Type:
RS-232 3-Pin
User Interface Indicator Type:
Indicators Power, Dante Network Input Selection, Digital Operation LEDs
Maximum Operating Temperature:
+40°C
Applications:
Classroom, Retail, Small to Mid-Size Meeting Rooms, Boardrooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Audio Encoding and Bitrate:
32bits
Audio Sample Rate:
32bits, 96kHz
Inputs and Ports
Audio Input Type:
2 Balanced Mono Audio on a 3-Pin Terminal Block
Interface Type:
Dante Network
Connectivity
Network Switch Type:
PoE
Power
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Current Rating:
100mA
Standards
Standards Met:
CE
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
