KDS-DEC6 4K60 4:2:0 HDCP 2.2 Video Decoder
Please sign in so that we can notify you about a reply

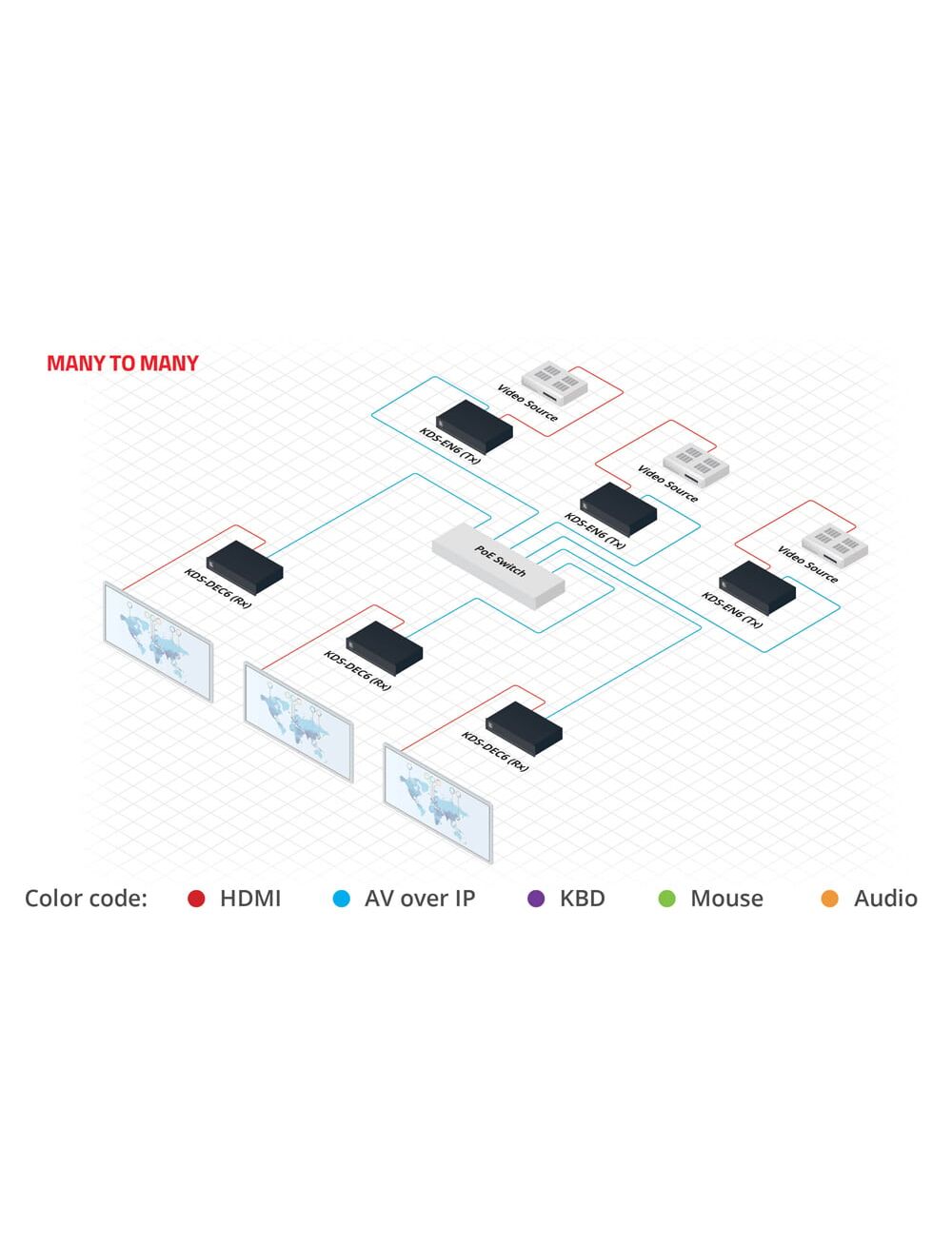

The KDS−DEC6 decoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast (one−to−one) or multicast (many−to−many) configurations.
Features
- Video Support - HDMI 4K@60Hz (4:2:0).
- Audio Support - HDMI/line in, 7.1 PCM, Dolby True-HD, and DTS-HD Master audio.

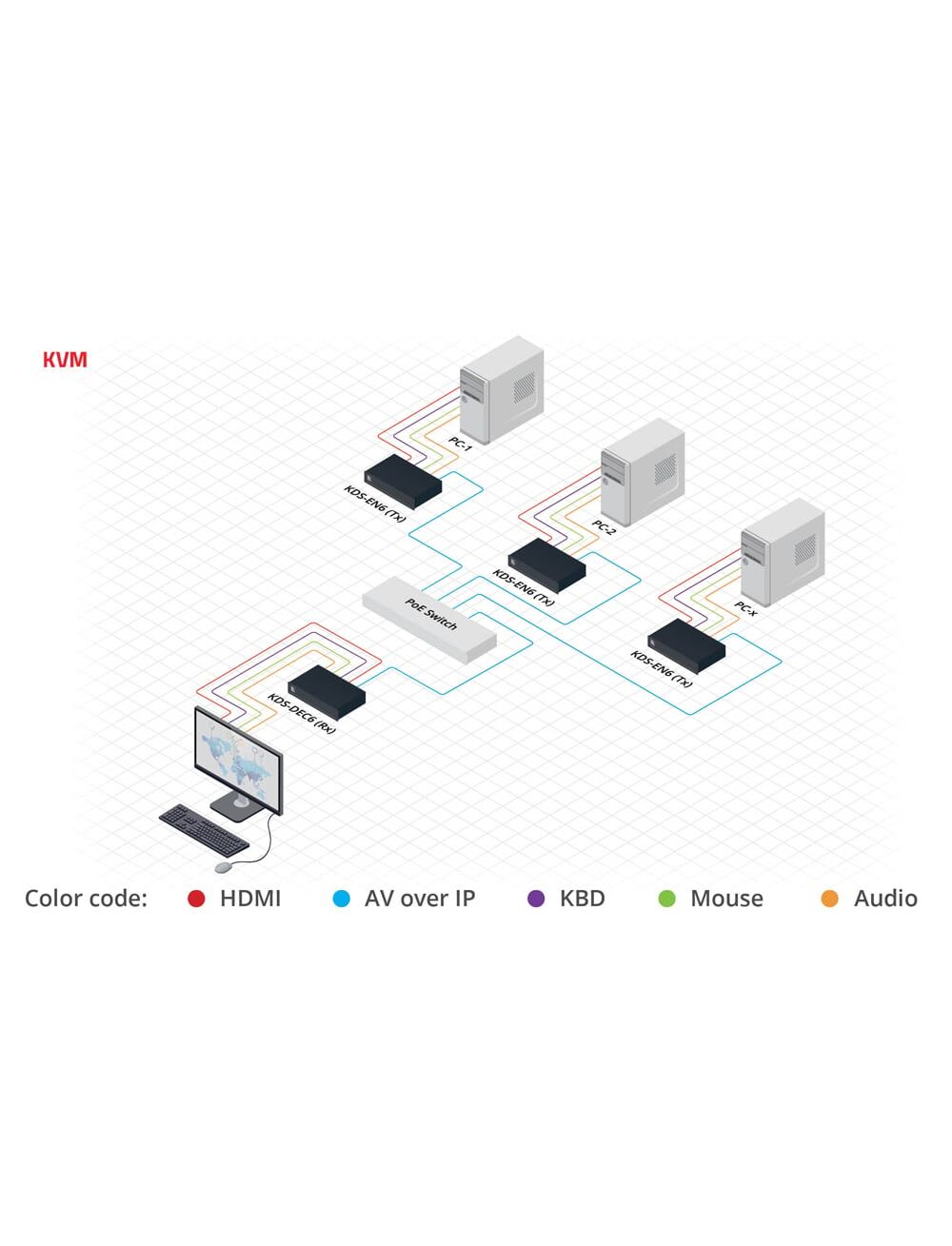

- Virtualization - IR, USB, RS-232 over IP.
- Network - Switch 1G multicast IGMP snooping managed layer 2.
- Power - PoE or external power supply (not included).
- HDCP - 1.4 and 2.2 compliance.
- Video Effects — Video Wall — 1 to 256 screens.
Brand:
Kramer
Part number:
60-000390
Specifications
Product Type:
HDCP 2.2 Video Decoder
HDMI Embedded Audio Channels:
PCM 2, 5.1/7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True-HD, DTS 5.1 Channel, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio
Streaming:
Unicast and Multicast through RTSP (Real Time Streaming Protocol)
Audio Decoding Type:
Compression Standard (Analog In/Out): AAC-LC
Control Type:
Reset Button, Up and Down Channel Button, Channel 7-Segment Display/STATUS/LINK and on LEDs
Special Features:
Video Support-HDMI 4K@60Hz (4:2:0), Audio Support-HDMI/line in, 7.1 PCM, Dolby True-HD, and DTS-HD Master audio, Virtualization-IR, USB, RS-232 Over IP
Maximum Operating Temperature:
+40°C
Applications:
Real-Time Essential Installations such as Command and Control Centre and Interactive Solutions with or Without KVM Capabilities, AV Distribution Systems with one or more Sources and many Displays in Schools, Universities, Public Venues, Long Distance Tran
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4096x2160pixels@60Hz, 3840x2160pixels@60Hz, 1920x1200pixels@60Hz, 1920x1080pixels@60Hz, 1864x1050pixels@60Hz, 1856x1392pixels@60Hz, 1792x1344pixels@60Hz, 1728x1080pixels@60Hz, 1704x960pixels@60H z, 1680x1050pixels@60Hz, 1600x1200pixels@60Hz, 1600x1050pixe
Video Decoding Type:
Compression Standard JPEG 2
HDCP Compliance Type:
1.4, 2.2
Bit Rate:
Peak-850Mbps, 4K Average-350Mbps, 1080pixels Average-250Mbps
Scaling and Cropping (Yes/No):
Yes
Inputs and Ports
Input Port Type:
RJ45
Output Port Type:
2xUSB (Type A)
Interface Type:
HDMI
IR Type:
Wide-Band 20kHz to 60kHz Bidirectional IR Transmission
Connectivity
Network Switch Type:
1G Multicast, IMGP Snooping Non-Blocking, Layer 2
Power
Power Source Type:
PoE or External Power Supply
Current Rating:
180mA
Standards
Standards Met:
ISO 9001, ISO 14001, ISO 45001, ISO 27001, CE
Dimensions
Width:
18.75cm
Depth:
11.5cm
Height:
2.5cm
Weight:
0.6kg
