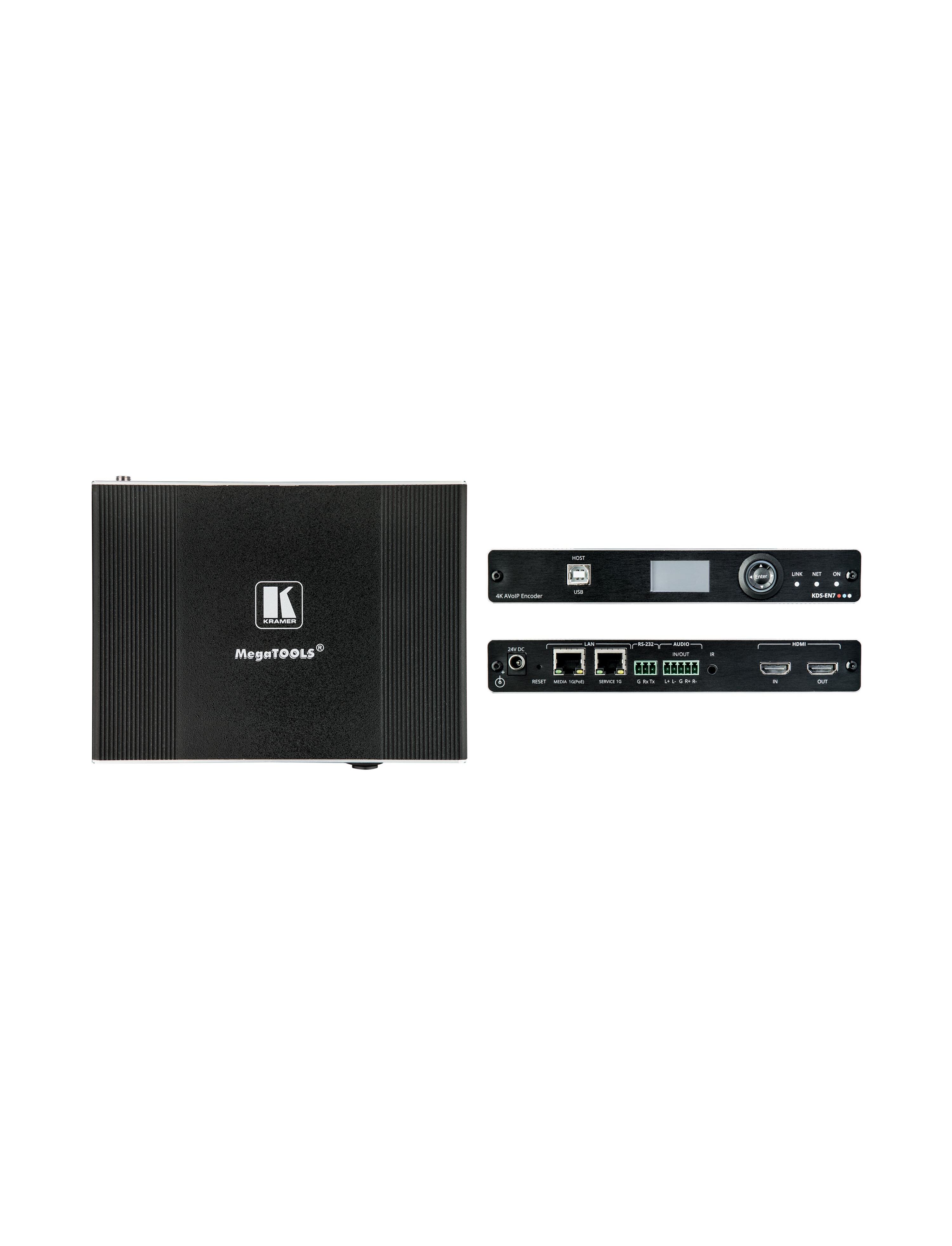

KDS-EN7 High–performance, highly–scalable, AVoIP Encoder for 4K over 1G network
Please sign in so that we can notify you about a reply
KDS−EN7 encoder is an advanced transmitter for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It encodes and streams over an IP network from HDMI input, and transmits the USB, IR, RS232, or CEC signal over IP network.
Features
Outstanding end-user experience -
- Rich set of inputs and interfaces
- Easy-to-use KM/KVM - Searchable OSD Menu for KM and fully configurable KVM roaming
- Large scale video wall - up to 16x16
- Instantaneous switching time - 1 second
Ideal for large-scale deployments -
- Highly scalable - 999 channels build in support
- State of the art management device
- Rich set of management capabilities - Standard P3K Open API , LCD screen for configuration
Robust security -
- Enterprise IT-grade security - 802.1x and HTTPS/TLs
- Security certification - OWASP Top 10 certificate
- Separate ETH ports for optimal security and experience
- New HW architecture that enables robust FW update
Simple planning and rollout: -
- Cost-effective from day one
- Full product range for any site, any application
- Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.
PoE Support -
- Using PoE switch - up to 13W consumption
- Alternative sources/destinations -
- HDMI Loop-Through on Encoder and HDMI Input on Decoder
Analog Audio -
- Embedding and De-embedding
Control gateway - Through P3K control/communicate with IR, RS232, or CEC to the connected devices
- Through P3K control/communicate with IR, RS232, or CEC to the connected devices
Brand:
Kramer
Part number:
60-000590
Specifications
Product Type:
AvoIP Encoder
Control Type:
Restart and Factory Reset Rear Panel Button, Embedded Web pages, P3K API Commands Via Ethernet, Front Panel Navigation Button
Special Features:
Instantaneous Switching Time-1 Second, Highly Scalable-999 Channels Buildin Support, State of the art Management Device, Separate ETH Ports for Optimal Security and Experience
User Interface Indicator Type:
LINK, NET, ON LEDs, Front Panel LCD Display
Maximum Operating Temperature:
+40°C
Applications:
For Real-Time Essential Installations Such as Command and Control Rooms, For Large Scale AV Content Sharing Installations using Existing wires and Infrastructure in Corporate Offices and Government, AV Distribution Systems with One or more Sources and man
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Resolution:
4K60 4:2:0, 4K30 4:4:4
HDCP Compliance Type:
2.2
Bit Rate:
4K30 4:2:2 12bits
Inputs and Ports
Video Input Type:
1xHDMI
IR Type:
3.5mm TRS Connector
Power
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards
Standards Met:
OWASP
Dimensions
Width:
18.9cm
Depth:
14.5cm
Height:
2.7cm
Weight:
0.7kg
