KDS-USB2-DEC USB 2.0 High−Speed Extension Decoder
Please sign in so that we can notify you about a reply

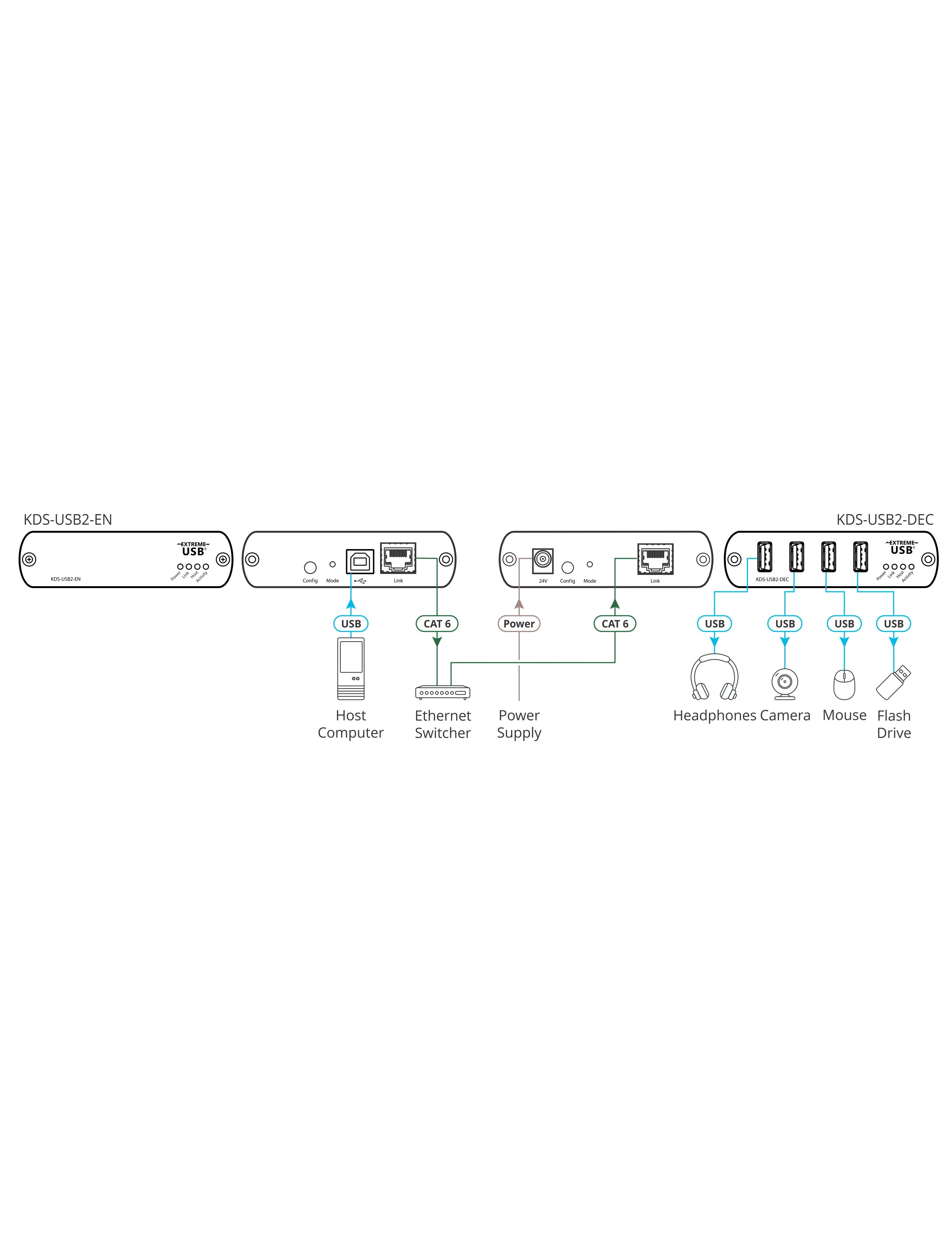

KDS−USB2−DEC is a USB 2.0 high−speed decoder for extending USB signals between a host computer and any USB peripheral device such as a mouse, keyboard, display, camera, mobile device, media player, or hard drive. Connect up to 4 USB devices to KDS−USB2−DEC to enable communication with the host computer connected to a KDS−USB2−EN encoder (sold separately).KDS−USB2−DEC can be paired with one KDS−USB2−EN encoder for basic one−to−one USB extension, but with the purchase of additional units, you can diversify your USB extension system. For example, connect USB cameras in multiple locations to one computer or enable users in multiple locations to collaborate using the same host computer over a Local Area Network (LAN), in real time, using their own keyboards, mice and touch screens. Using Kramer’s cloud−based control platform, you can map and/or control these multi−unit setups.
Features
- High-Speed Extension - Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable. Achieves USB 2.0 throughput up to 480 Mbps point-to-point or over LAN.Note: Use recommended Kramer cables for best performance.
- Extend Multiple Devices - Connect to all 4 decoder ports simultaneously with 5 Volts, 500 mA available on each port.
- Collaboration - Pair up to seven decoders to one encoder/host computer for extended, multi-location collaboration.
- SwitchableUSB™ - Construct one-to-many and many-to-many unit setups using Kramer’s cloud-based control platform to manage the mapping and switch the connections.
- Reliable and Certified - Passes all key USB-IF compliance tests and FCC/CE Class B certified.
- True Plug and Play - No software drivers required.
- Compatibility - Works with all major operating systems including Windows®, macOS™ and Linux®.
Brand:
Kramer
Part number:
59-002490
Specifications
Product Type:
High-Speed Extension Decoder
Cable Length:
100m
Special Features:
Extend Multiple Devices-Connect to all 4 Decoder ports Simultaneously with 5 Volts, 500 mA Available on each port, Collaboration-Pair Up to seven Decoders to one Encoder/host Computer for Extended,Multi Location Collaboration, True Plug and Play-No Softwa
Control Interface Type:
Front Panel Pairing Button
Applications:
Training Facilities, Collaborative Classroom, Lecture halls, Control Rooms, Any space where USB 2.0 peripheral devices are required
Includes:
1 Power adapter
Inputs and Ports
Interface Type:
Power, Link, Host, Activity LEDs
Power
Power Source Type:
Adapter 24V DC
Current Rating:
780mA
Standards
Standards Met:
FCC Compliant/CE
Dimensions
Width:
9.5cm
Depth:
8cm
Height:
2.5cm
Weight:
0.2kg
