View Pro E110 View Pro Encoder, 2 A@Normal Operation/6 A@Max with Power Supply/Rack Mount Ear, 19 V DC
Please sign in so that we can notify you about a reply
A single channel VIDEODSP™ product unmatched in scalability, quality, and overall value, the VIEW® Pro E110 Encoder promises AV streaming and delivery that is uncompromised in clarity, ease of use and deployment, and efficiency.
Features- High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 colour space, HDCP for content protection
- Low bandwidth consumption and unlimited scalability
- Standards based streams that interoperates with 3rd party systems
- Software based system for video wall and video composition features that replace hardware video processors
Brand:
ClearOne
Specifications
Product Type:
View Pro Encoder
Streaming:
Video: Up to 2 1080pixels@60Hz or 1920×1200@57Hz, Audio: Stereo or Multi-Channel Pass Through, 4 Streams (2 Analog (Stereo) and 2 Digital (Stereo or Multi-CH)), StreamNet Discovery & Control: Requires StreamNet 3.1x or Higher
Audio Decoding Type:
Compression Standard: H.264/MPEG4 Part 10 (AVC)
Special Features:
Full HD 1080p60 Resolution, Ultra Low Latency-End to End, Full HDCP Support
Control Interface Type:
DB9 (Serial RS-232 Port), 3.5mm Phone Jack (IR Input/IR Output), USB 3.0/2.0, X3 Removable Phoenix 3.55mm (GPIO Input/GPIO Output)
Maximum Operating Temperature:
40°C
Applications:
Workplace, Corporate Announcement, Live Streaming, Command & Control, Telemedicine, Digital Signage
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Rack Mount Ear
Performance
Video Resolution:
1920×1080pixels (1080pixels@60Hz), 1920×1200pixels (WUXGA), 1280×720pixels (HD720), 1600×1200pixels (UXGA), 1680×1050pixels (WSXGA+), 1440×1080pixels (SXGA+), 1440×1050pixels (SXGA+), 1440×900pixels (WXGA), 1280×1024pixels (SXGA), 1024×768pixels
HDCP Compliance Type:
HDCP 2.1
Audio Encoding and Bitrate:
32Kbps, 96Kbps, 128Kbps, 192Kbps, 320Kbps
Audio Sample Rate:
11kHz, 22kHz, 24KHz, 32kHz, 44.1kHz, 48kHz, 96kHz, 128kHz, 192kHz
Scaling and Cropping (Yes/No):
Yes

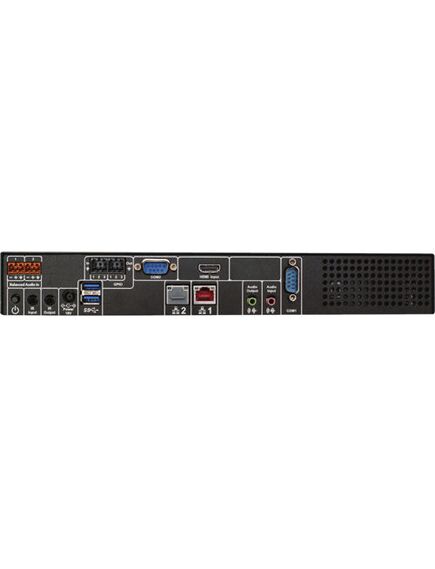

Inputs and Ports
Audio Input Type:
2 Channel Balanced Analog Audio Input, 2 CH Unbalanced Analog Audio Input, Digital Audio I/O: X1 Input Via HDMI Port, USB Audio: X1 Input (Future)
Input Port Type:
Audio: 2 Channel Balanced Analog Audio Input/2 Channel Unbalanced Analog Audio Input, Digital Audio I/O: X1 Input Via HDMI Port, USB Audio: X1 Input (Future), Control: DB9 (Serial RS-232 Port)/3.5mm Phone Jack (T/R 3 pos.) (IR Input)/USB 3.0/2.0, X3 Remov
Output Port Type:
Control: 3.5mm Phone Jack (T/R 3 pos.) (IR Output), X3 Removable Phoenix 3.55mm (6 pos×1) (GPIO Output)
Interface Type:
10/100/1000 RJ45: X2 Gigabyte Port
Connectivity
Supported Stream Platforms:
RTSP/UDP
Power
Voltage Rating:
19V DC
Voltage Rating:
19V DC
Power Source Type:
External Power Supply
Current Rating:
2A@Normal Operation, 6A@Max
Dimensions
Width:
30.9cm
Depth:
4.4cm
Height:
18.7cm
