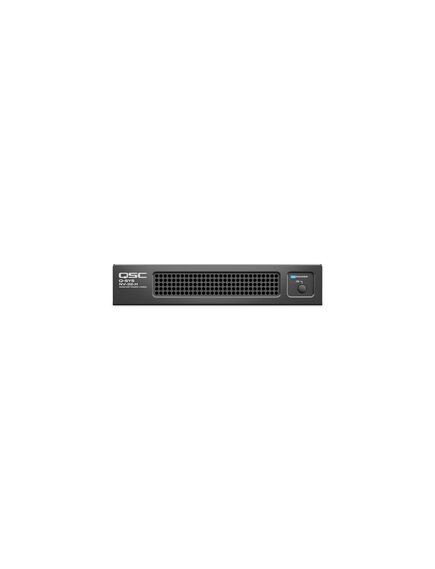

NV-32-H (Core Capable) Network Video Endpoint, Black with Keyboard/Mouse/Touch Screen
Please sign in so that we can notify you about a reply
The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Platform, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control driven by the Q-SYS OS, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
Brand:
QSC Systems
Specifications
Product Type:
Network Video Endpoint
Number of Channels:
32x32
Special Features:
32x32 Network Audio Channels, 8xAEC Channels, 1xVoIP Softphone Instance
Maximum Operating Temperature:
50°C
Colour:
Black
Humidity:
5 to 85%
Minimum Operating Temperature:
0°C
Includes:
Keyboard, Mouse, Touch Screen
Performance
Maximum Input Resolution:
3840x2160pixels (4K UHD), 3440x1400pixels, 2560x1600pixels, 2560x1440pixels, 2560x1080pixels, 1920x1200pixels, 1920x1080 (1080 p), 1920x720 (720 p), 640x480pixels
Signal-to-Noise Ratio:
80dB (Analog Input), 90dB (Analog Output)
Frequency Rating:
20Hz to 20kHz@+0.05%/-0.5% (Analog Input), 20Hz to 20kHz@+0.02%/-0.5% (Analog Output)
Total Harmonic Distortion:
0.009%@0dB (Input), 0.0167%@0dB (Output)
A/D and D/A Conversion Type:
24bits
Input Impedance Rating:
5kΩ
Inputs and Ports
Input Port Type:
3xHDMI (Video), 8-Channel PCM Audio, Two-Pin Euroblock Terminal Connection
Output Port Type:
2xHDMI (Video), 8-Channel PCM Audio, 3.5mm Unbalanced Stereo Line (Analog)
I/O Interface Type:
3xHDMI (Video), 2xHDMI (Video), 8-Channel PCM Audio
Standards
Standards Met:
CE, FCC Part 15 Class B, RoHS Compliant
Dimensions
Width:
28.6cm
Depth:
22cm
Height:
4.3cm
Weight:
1.8kg
