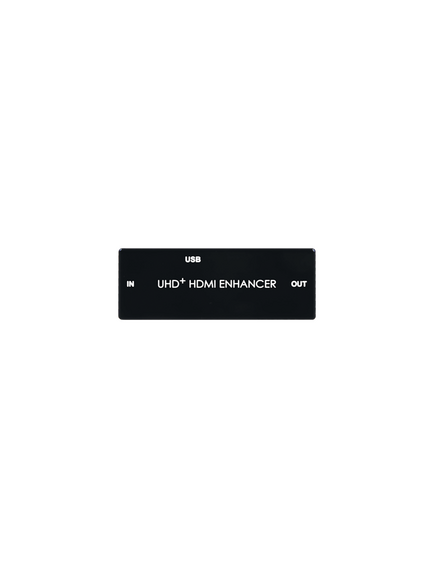

CPLUS-VHH UHD+ HDMI Enhancer
Please sign in so that we can notify you about a reply
This 4K UHD HDMI to HDMI Enhancer with 5V Power Injection is an advanced solution for HDMI signal extension and cascading. This unit is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission over long distances using multiple HDMI cables without the need for external power. 4K signals may be extended over distances up to 5M per cable segment with support for cascading up to 4 times. This unit is powered by the 5V that accompanies standard HDMI signals, however in situations where additional 5V power is required (such as when cascading) it can be added with the simple connection of an external USB power source.
Features
- Retiming capability allows for clean regenerated signals for transmission.
- Supports USB 5V injector functions
- Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports CEC/ARC bypass
- Cascading HDMI signal up to 7 layers with 9m Premium Cable (63 meters)
- Compact design
Note:
1. For devices that do not support power over cable and USB Power Injector can be used to the HDMI Enhancer.
2. HDMI cable tested with 28AWG, different source and different cable may cause in different result on cable distance and cascading layers.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Enhancer
Cable Length:
15m 1080p@60Hz, 8bits), 10m (1080p@60Hz, 12bits), 5m (4K@60Hz, 4:2:0, 8bits), 5m (4K@60Hz, 4:4:4, 8bits)
Power Rating:
0.75W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
Performance
Resolution:
HDMI, 4096x2160pixels@60Hz, HDMI, 4096x2160pixels@60Hz
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Bandwidth:
18Gbps
Maximum Input Resolution:
4096x2160pixels@60Hz
Maximum Output Resolution:
4096x2160pixels@60Hz
Output Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR 12
Inputs and Ports
Input Port Type:
HDMI Type A
Output Port Type:
HDMI-Type A
I/O Interface Type:
1xUSB 2.0 (Micro-B)
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR 12
Power
Voltage Rating:
5V DC
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CEC/ARC Certified
Dimensions
Width:
6.5cm
Depth:
2.4cm
Height:
1cm
Weight:
15g
