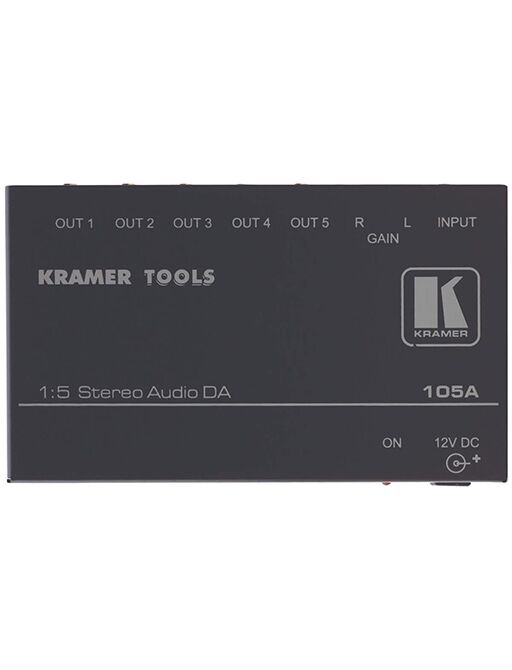

105A 1:5 Stereo Audio Distribution Amplifier
Please sign in so that we can notify you about a reply
The 105A is a high-performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.
Features
- Level (Gain) Controls.
- S/N Ratio — 80dB (unweighted).
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-010590
Specifications
Product Type:
Stereo Audio Distribution Amplifier
Special Features:
Level (Gain) Control, S/N Ratio, Compact Kramer TOOLS™
Applications:
Video/Audio Duplication Studios, Retail Showrooms, Home Theatre Systems, Any Audio System Requiring Multiple Output From a Single Source
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
20kHz
Signal-to-Noise Ratio:
80dB
Total Harmonic Distortion:
0.03%
Input Impedance Rating:
33kΩ
Inputs and Ports
Output Type:
5xUnbalanced Stereo/Balanced Mono, 1Vpp/50Ω on 3.5mm Mini Jack
Connector Type:
3.5mm Mini Jack
Input Type:
1xUnbalanced Stereo/Balanced Mono, 1Vp-p/33 kΩ on a 3.5mm Mini Jack
Power
Input Voltage:
12V DC
Output Impedance Rating:
50Ω
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.1kg
