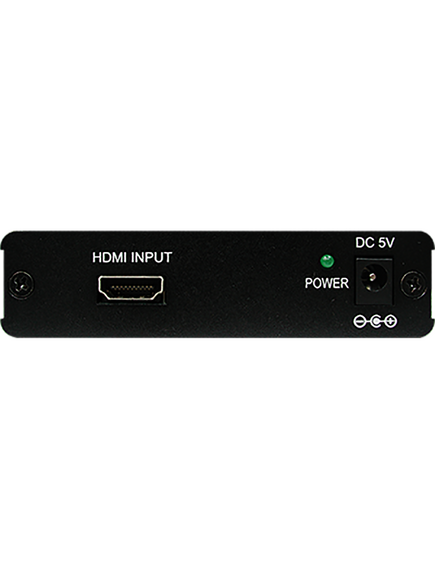

CLUx-12S 1x2 HDMI Splitter
Please sign in so that we can notify you about a reply
The HDMI Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDMI DA series also does signal amplification and equalization, so as to provide high performance I/O of audio and video.
Features
- HDMI 1.3, HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@24/60 Hz
- One HDMI source to connect up to two HDMI displays simultaneously
- HDCP keysets allows each output to work independently when connecting to an HDMI display
- Splits a HDMI source up to two outputs without signal loss
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to UxGA and 480i to 1080p
- HDMI cable distance test with 1080p/8-bit resolution, the Input/Output source can run up to 20/15 meters
- HDMI cable distance test with 1080p/12-bit the Input/Output source can run up to 15/10 meters
- Supports EDID functionality
- Supports CEC bypass
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Supported Signals:
VGA to UXGA
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Aluminium
Minimum Operating Temperature:
0°C
Performance
Resolution:
VGA to UXGA, 480i to 1080pixels
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
3
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards
Standards Met:
US/EU Standards, CE/FCC/UL Certified
Dimensions
Width:
10cm
Depth:
14.7cm
Height:
2.5cm
Weight:
300g
