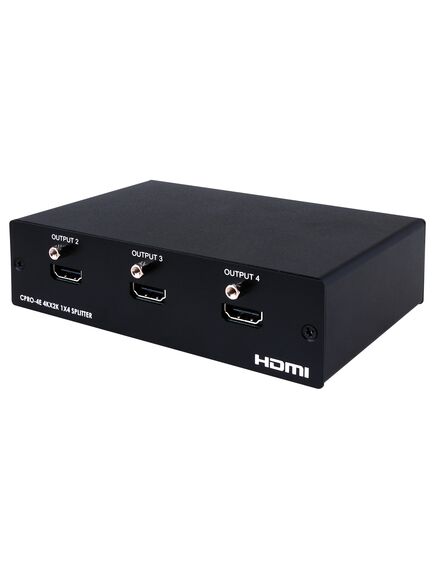

CPRO-4E 1 by 4 HDMI Splitter
Please sign in so that we can notify you about a reply
This range of high performance HDMI splitters provide one HDMI in to two, four or eight HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio.
Features- Supports HDTV resolutions up to 4K×2K/30 Hz
- Supports LPCM 7.1CH, Bitstream, HD Bitstream
- Supports 3D
Brand:
Cypress Technology
Specifications
Product Type:
1 by 4 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
Power Rating:
2.85W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Simultaneously Display One HDMI Source on 2/4 or 8 TV's/Projectors, Showroom Display, University Lecture Hall Display, Commercial Presentation Switcher/Scaler
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4Kx2K
Frequency Rating:
300MHz (Video)
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
10
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.3cm
Depth:
15.5cm
Height:
2.5cm
Weight:
298g
