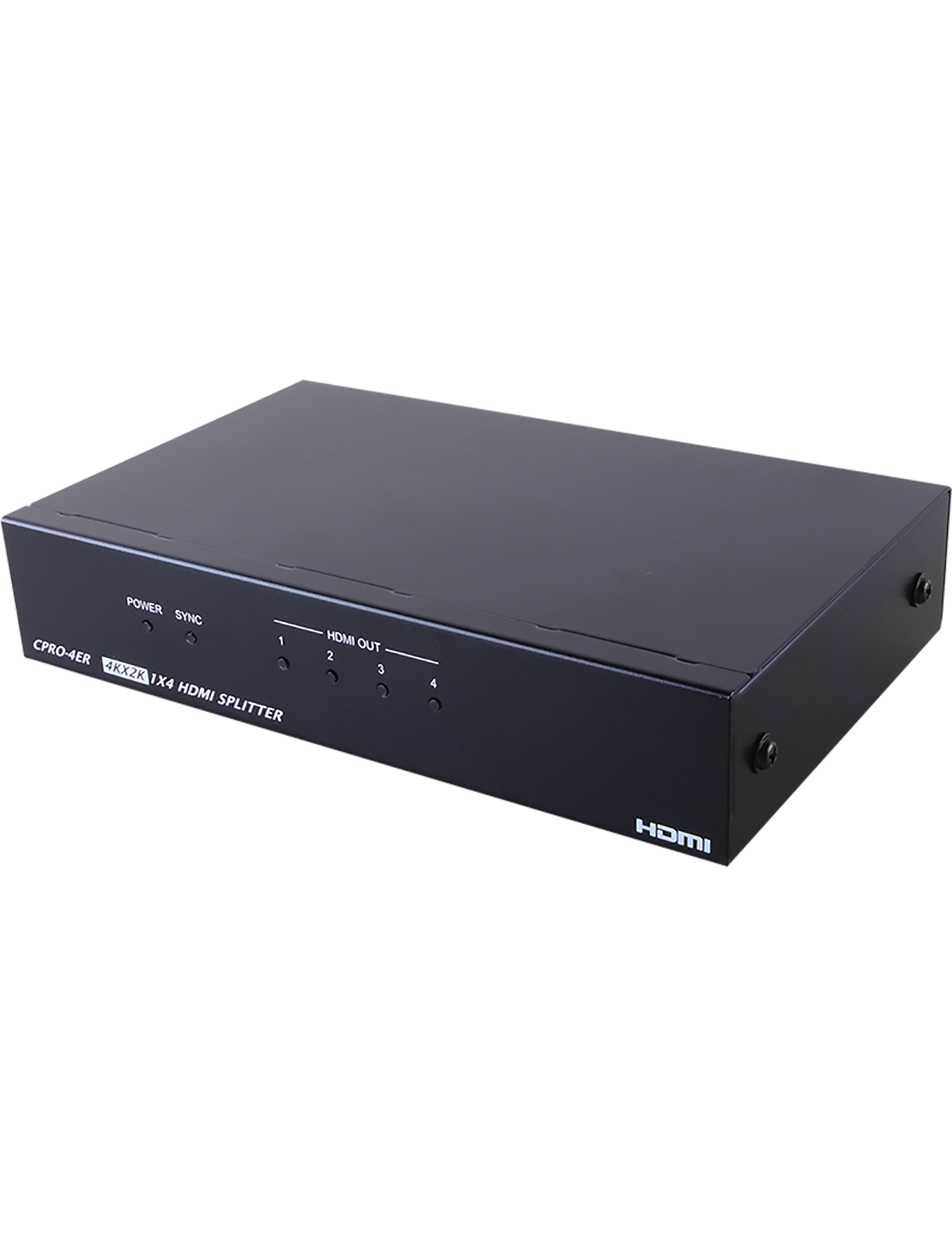

CPRO-4ER 1x4 HDMI 4K UHD Splitter
Please sign in so that we can notify you about a reply
The HDMI splitter provides one HDMI in to four HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Color as well as High definition Lossless Audio. With its 9Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.
Features
- Supports HDTV resolutions up to 4Kx2K/30Hz
- HDMI and DVI compatible
- Supports 1080p@60Hz, Deep Color 12-bit
- Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- Supports 3D
- Supports System reset and EDID selection functions
Note: Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.
Brand:
Cypress Technology
Specifications
Product Type:
1 by 4 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
Supported Signals:
UHD
Power Rating:
4W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Simultaneously Display One HDMI Source on 4 TV'S /Projectors, Showroom Display, University Lecture Hall Display, Retail Sales Display, Commercial Presentation Switcher/Scaler
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4Kx2K
Frequency Rating:
300MHz (Video)
Inputs and Ports
Connector Type:
HDMI, DVI
Number of Ports:
6
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US/EU Standards, CE/FCC/UL Certified
Dimensions
Width:
21.5cm
Depth:
14cm
Height:
4.8cm
Weight:
858g
