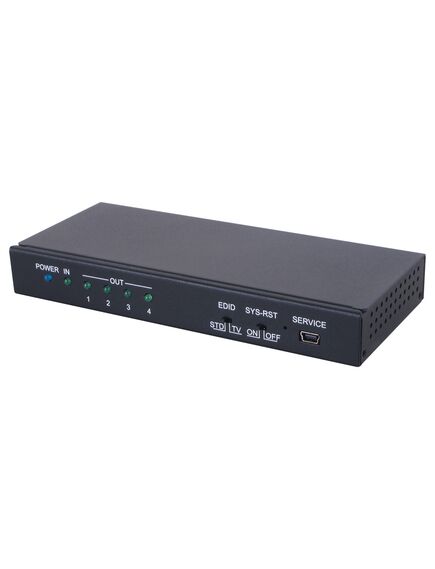

CPRO-U4T UHD 1x4 HDMI Splitter
Please sign in so that we can notify you about a reply
This 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input to 4 HDMI outputs. This splitter provides a high level of audio and video performance with support for video resolutions up to 4K@60Hz (4:2:0) and high definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. Standard EDID management functionality is included and the System Reset function allows the unit to automatically change the input selection on any connected, CEC enabled, TVs to the input the unit is currently connected to.
Features
- Simultaneous display of a single 4K source on up to two 4K displays
- 3D signal support (with 3D source and compatible 3D TV)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- System Reset function (CEC active source command)
- EDID management control including “Standard” (Internal EDID) mode and “TV” (External Display EDID) modes
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Splitter
Audio Format:
LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
Supported Signals:
UHD
Power Rating:
1.32W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Classroom and Lecture Hall Presentation, Showrooms and Demo Rooms, Hotel Lobby information Display, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
EDID
Performance
Frequency Rating:
340MHz
Inputs and Ports
Connector Type:
CEC
Number of Ports:
5
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US/EU Standards, CE/FCC/UL Certified
Dimensions
Width:
16.1cm
Depth:
6.8cm
Height:
2.2cm
Weight:
311g
