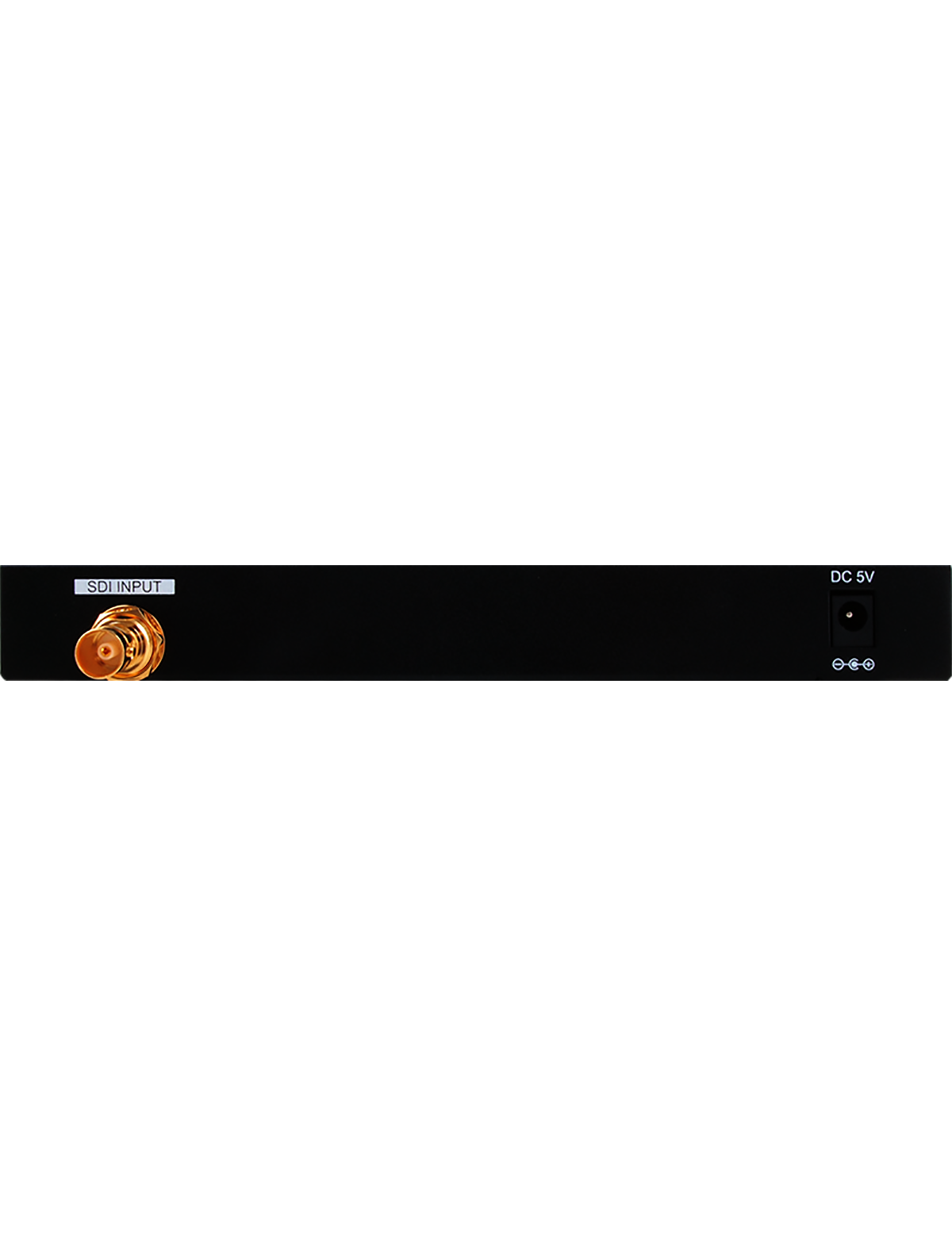

CSDI-14 3G-SDI 1 by 4 Splitter
Please sign in so that we can notify you about a reply
The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be split from a single SDI source to up four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbit/s to give you high bandwidth signal transmission without signal loss over long distances.
Features
- SplitS one 3G-SDI input source to four 3G-SDI displays simultaneously
- Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
- Supports SMPTE 425M-A, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Provides equalized and re-clocked transmission
- Supports signal input and output distances of up to 300m for SD-SDI signals, 200m for HD-SDI signals and 100m for 3G-SDI signals
Brand:
Cypress Technology
Specifications
Product Type:
1 by 4 Splitter
Supported Signals:
SDI
Power Rating:
5W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Video Broadcasting Display, Professional Video Program Display, Film Studios Program Monitoring, Video Program Switching Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Frequency Rating:
340MHz
Inputs and Ports
Number of Ports:
5
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US/EU Standards, CE/FCC/UL Certified
Dimensions
Width:
20cm
Depth:
13.8cm
Height:
3cm
Weight:
900g
