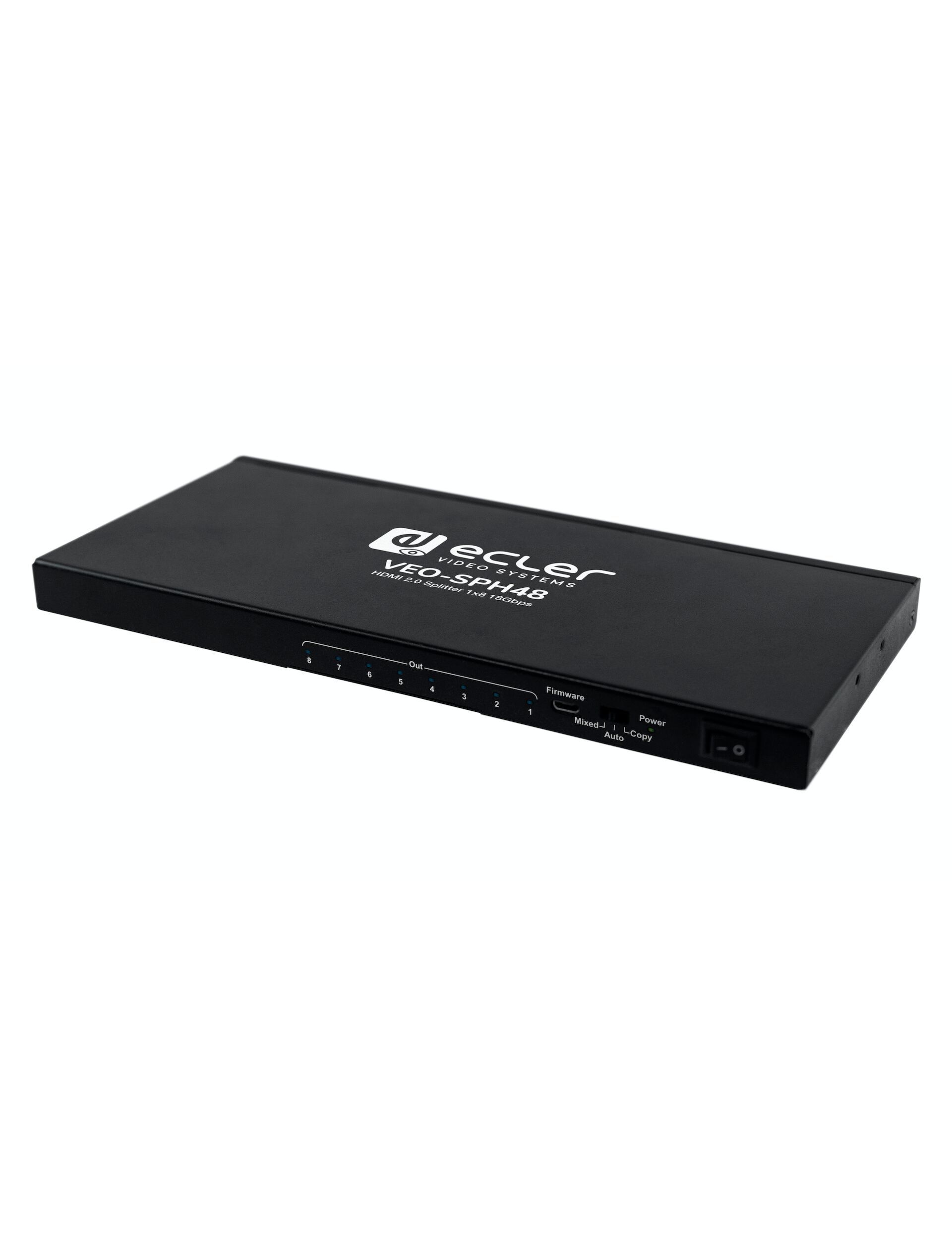

VEO-SPH48 1x8 HDMI Splitter, Black, For HDR
Please sign in so that we can notify you about a reply
VEO-SPH48 is a 1×8 HDMI splitter for high dynamic range (HDR) formats. Simultaneously displays an UItra Hi-Definition source on up to eight UItra HD displays. It includes EDID management features.
Features
- Supports resolutions up to UItra HD 4Kx2K(4096x2160@60Hz YUV 4:4:4 )
- Three EDID setting modes
- HDCP2.2/1.4 Compliant
- Supports 36 bit Deep Color
- Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
- Supports HDR and 3D contents
- Supports up to 18Gbps video data rate
- Front panel LED indicators for power and signal status
Brand:
Ecler
Specifications
Product Type:
HDMI Splitter
Audio Format:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio
Power Rating:
5W (Maximum)
Maximum Operating Temperature:
+40°C
Chassis Material:
Metal
Applications:
Retail Shop, Fitness Center, Sport, Bar, Restaurant, Hotel, Residential
Humidity:
5 to 90%
Minimum Operating Temperature:
-5°C
Includes:
(1) DC 5V 1A International Power Supply
Performance
Resolution:
Up to 4096x2160@60Hz, 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080px1080pixels@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50Hz/59.94/60Hz, 720pixels@50Hz/59.94/60Hz, 576pixels, 576i, 480pixels, 480i
HDMI Compliance Type:
2.0
HDCP Compliance Type:
HDCP 2.2, HDCP 1.4
Maximum Analog Resolution:
4Kx2K (4096x2160@60Hz YUV 4:4:4 )
Colour Depth:
8bits, 10bits, 12bits
Colour Space:
RGB, YCbCr
Frequency Rating:
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192kHz
Inputs and Ports
Connector Type:
1xHDMI Type A Female 2.0, 2xHDMI Type A Female2.0
Number of Ports:
1 HDMI (Video In), 8 HDMI (Video Out)
Power
Voltage Rating:
100/240V AC@50Hz/60Hz, 5 VDC@1A
Dimensions
Width:
24.8cm
Depth:
11cm
Height:
1.7cm
Weight:
0.6kg
Shipping Weight:
1kg
