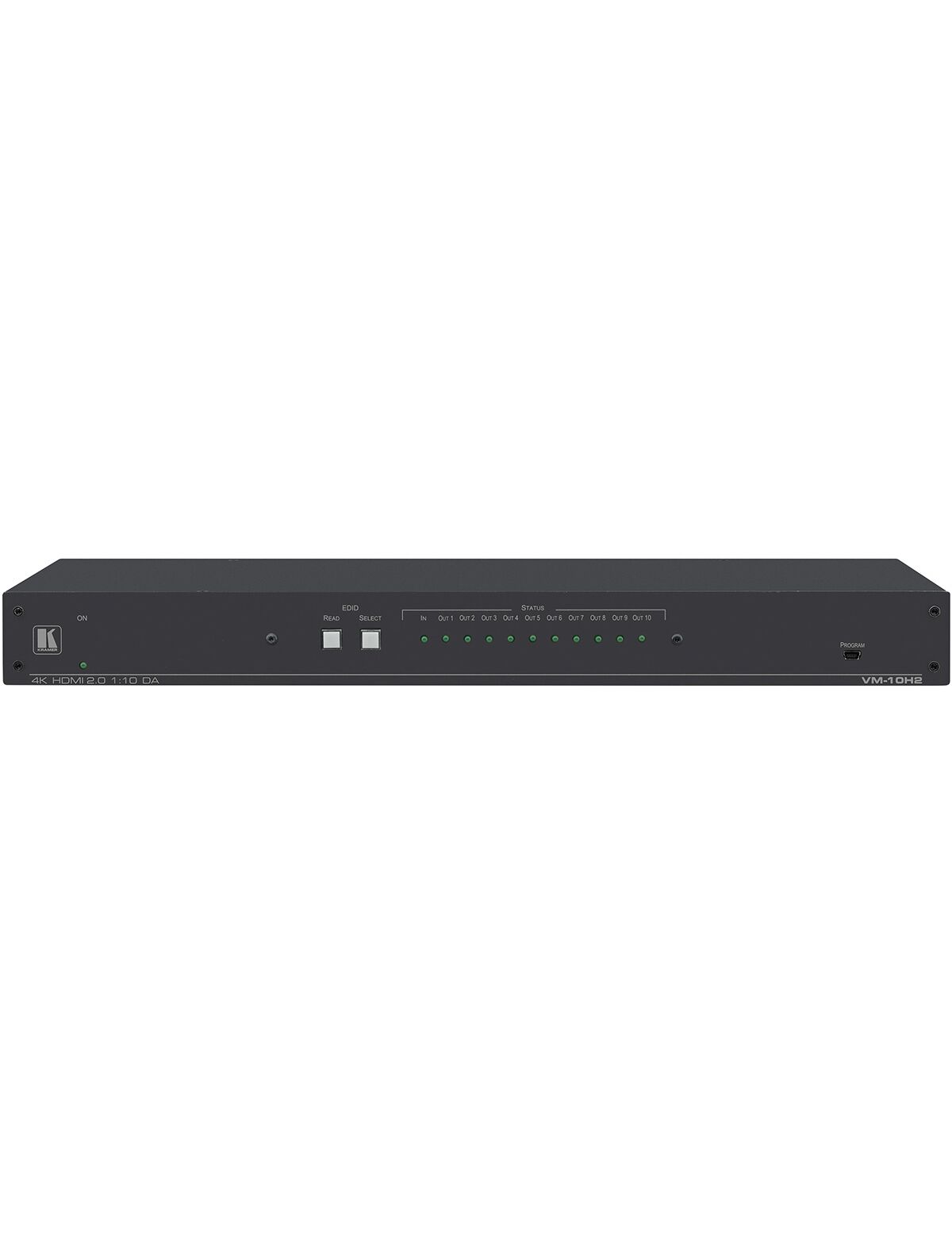

VM-10H2 1:10 4K60 4:4:4 HDCP 2.2 HDMI 2.0 Distribution Amplifier
Please sign in so that we can notify you about a reply
VM−10H2 is a 1:10 distribution amplifier for up to 4K HDR, HDMI signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal, and distributes it to ten identical outputs.
Features
- High Performance Distributor — Professional 1:10 HDMI distributor for up to 4K@60Hz (4:4:4) video resolution signals. One HDMI HDCP 2.2 input signal is amplified and distributed to ten identical output signals, with signals rebuilt using Kramer Equalization & re–Klocking™ Technology to gain longer distances.
- HDMI Signal Transmission — HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the displays.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, HDCP authorization, and video–wall synced–operation control. Intuitive EDID acquisition, selection, and setting using front panel buttons and LED indications. Auto–EDID feature for even simpler EDID operation
- Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade and easy EDID handling using the Kramer EDID–Designer tool. Selectable distributor maintenance options and status indicators for fast and effective troubleshooting.
- Easy Installation — 19” enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100–240V AC power connection.
Brand:
Kramer
Part number:
10-80102030
Specifications
Product Type:
HDR HDMI Distribution Amplifier
Special Features:
High Performance Distributor, HDMI Signal Transmission, -EDIDPro™ Kramer Intelligent EDID Processing™, User-Friendly Operation, Cost-Effective Field Maintenance, Easy Installation
Applications:
Simple Distribution of High-Resolution 4K Signals in Corporate, Education, Hospitality and Government Market Segments
Indicator Type:
LED
Includes:
Power Adapter Cord, Rack Ears
Performance
Bandwidth:
Up to 17.82Gbps
Frequency Rating:
50/60Hz
Inputs and Ports
Output Type:
2xBalanced Mono Line Output on 3-Pin Terminal Block Connector
Input Type:
1xHDMI: on a HDMI Female Connector
Power
Input Voltage:
100 to 240V AC
Dimensions
Width:
43.6cm
Depth:
18.3cm
Height:
4.3cm
Weight:
1.8kg
