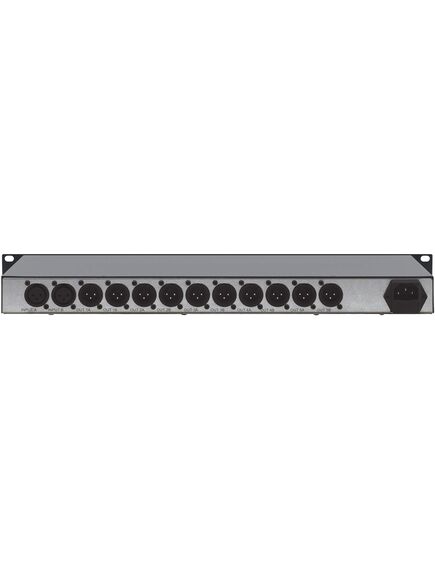

VM-1110XL/220V 1:10 Balanced Mono Audio Distribution Amplifier, 220V
Please sign in so that we can notify you about a reply
The VM-1110xl is a high-performance distribution amplifier for balanced mono audio signals on XLR connectors. It can also be configured as a 1:5 distribution amplifier for stereo balanced audio signals.
Features
- Level (Gain) Controls.
- Dual Mode — Configure as 1:10 (mono) or 1:5 (stereo) DA.
- S/N Ratio — 89.3dB.
- Standard 19” Rack Mount Size — 1U.
Brand:
Kramer
Part number:
11-0415520
Specifications
Product Type:
Balanced Mono Audio Distribution Amplifier
Version:
220V
Special Features:
Level (Gain) Control, Dual Mode, Dual Mode, Standard 19” Rack Mount Size
Applications:
Audio Duplication and Production Studios, Delivering Undiminished Quality Duplicates, Recording Studios, Broadcast Studios for on-Line Signal Distribution
Includes:
Power Cord
Performance
Bandwidth:
>100kHz
Signal-to-Noise Ratio:
89.3dB
Total Harmonic Distortion:
0.081%
Input Impedance Rating:
50kΩ
Inputs and Ports
Output Type:
10xBalanced Stereo Audio, +4dBu/50Ω on XLR (M) Connector
Connector Type:
XLR F (Input), XLR M (Ouput)
Input Type:
2xBalanced Stereo Audio, +4 dBu/50 kΩ onxLR (F) Connector
Power
Input Voltage:
230V AC
Output Impedance Rating:
50Ω
Dimensions
Width:
43.6cm
Depth:
18.3cm
Height:
4.3cm
Weight:
2.8kg
