VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier
Please sign in so that we can notify you about a reply

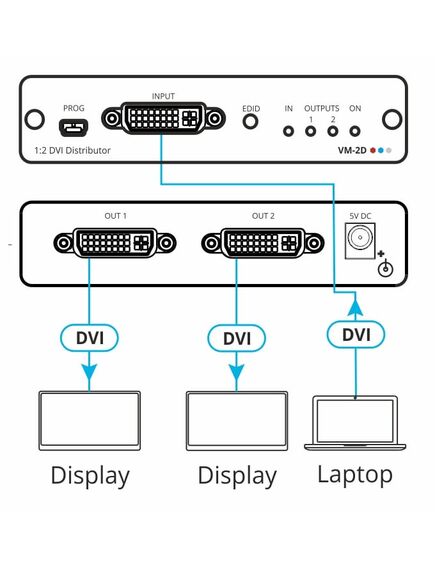

VM−2D is a 1:2 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI signals, complying with HDCP 1.4 content protection standard, via single−link DVI−I connections. The unit takes one DVI input, equalizes and reclocks the signal, and distributes it to two identical outputs.
Features
- High Performance Distributor — Professional 1:2 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single–link DVI–I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to two identical output signals, with signals rebuilt using Kramer Equalization & re–Klocking™ Technology to gain longer distances.
- Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for DVI source and display systems.
- User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, with convenient EDID selection front panel button.
- Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade. Status indicators for fast and effective troubleshooting.
- Easy Installation — Compact TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the optional recommended rack adapter.
Brand:
Kramer
Part number:
10-8048501090
Specifications
Product Type:
DVI Distribution Amplifier
Special Features:
High Performance Distributor, Secured Operation, HDMI Signal Transmission, I-EDIDPro™ kramer Intelligent EDID Processing™, User-Friendly Operation, Cost-Effective Field Maintenance, Easy Installation
Maximum Operating Temperature:
+40°C
Applications:
Medical Market Operation Rooms and Other Critical Multimedia, Highly Reliable Operation of High-Quality Professional AV Deployments Via Lockable Cable Connections, Governmental Market Hi-Reliability AV, Rental and Staging Events
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Bracket Set
Performance
Bandwidth:
Up to 10.2Gbps
Inputs and Ports
Output Type:
2xDVI on DVI-I Female Connector
Input Type:
1xDVI: on a DVI-I Female Connector
Power
Input Voltage:
5V DC
Standards
Standards Met:
CE, RoHS Compliant, WEEE
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
