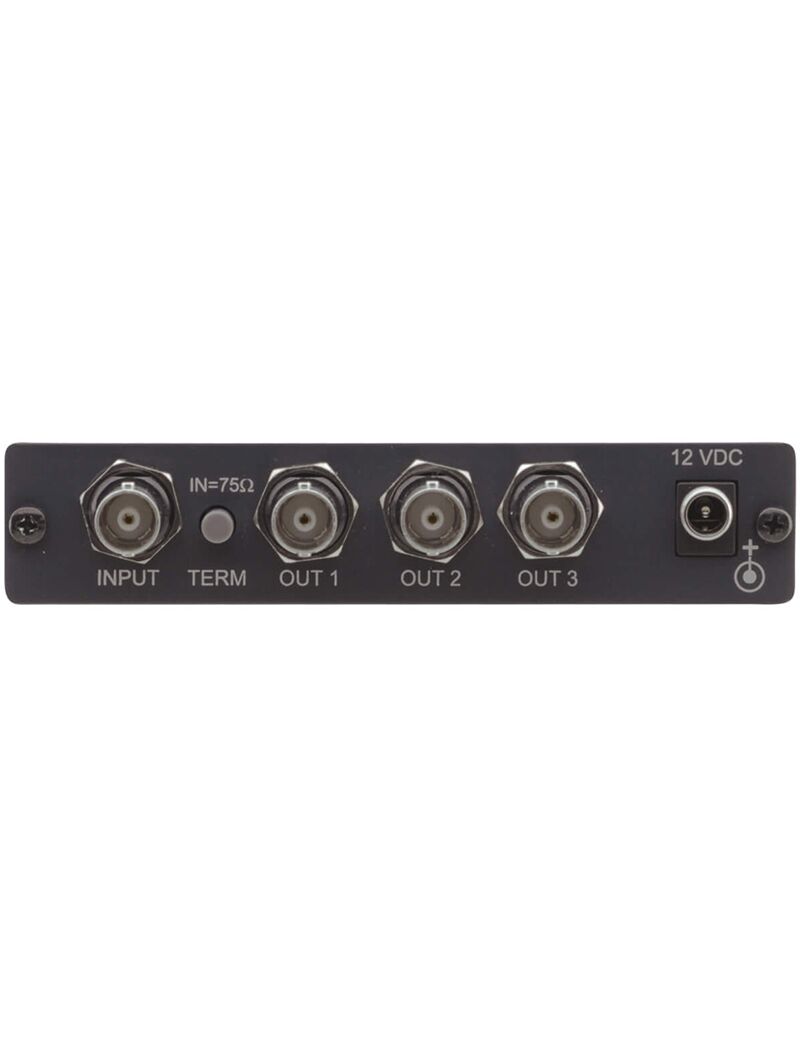

VM-3VN 1:3 Composite Video Distribution Amplifier
Please sign in so that we can notify you about a reply
The VM-3VN is a distribution amplifier for composite video signals. The unit takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.
Features
- High Bandwidth — 430MHz (–3dB).
- Selectable Input Signal Termination.
- Level (Gain) & EQ (Peaking) Controls.
Brand:
Kramer
Part number:
11-70799090
Specifications
Product Type:
Composite Video Distribution Amplifier
Video Signal Format:
Composite Video
Special Features:
Selectable Input Signal Termination, Level (Gain) & EQ (Peaking) Control
Applications:
Audio Duplication Studios, Delivering High-Quality Audio and Video Duplicates, Broadcast and Production Studios for Signal Distribution, Presentation and Multimedia Distribution, Field Distribution
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
430MHz
Signal-to-Noise Ratio:
74.3dB
K-Factor:
<0.05%
Differential Gain:
0.12%
Differential Phase:
0.03°
Inputs and Ports
Output Type:
3xComposite Video on BNC Connector
Connector Type:
BNC
Input Type:
1xComposite Video on a BNC Connector
Power
Input Voltage:
12V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
