VM-4DT 1:4 4K60 4:2:0 Long-Reach HDBaseT Distribution Amplifier
Please sign in so that we can notify you about a reply

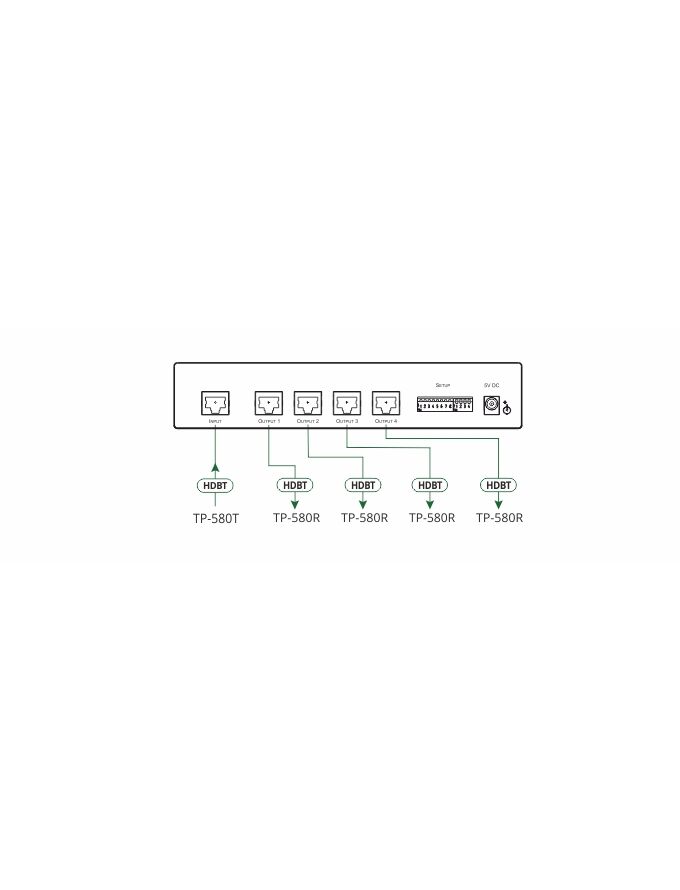

VM−4DT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long−reach HDBaseT input, equalizes and reclocks the signal and distributes it to four identical HDBaseT outputs. VM−4DT distributes native HDBaseT signals with up to 4K video resolution, along with their re−extension over HDBaseT.
Features
- High Performance Distribution — Distributes one native, long–reach HDBaseT signal to four outputs with up to 4K video resolution, along with their re–extension over HDBaseT.
- Dual–side Extension — Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions, when deployed mid–way between an AV source and multiple remote acceptors using CAT copper cable.
- Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- LED Indicators — Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
- Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Standard half–width 19” rack (1U) fan–less enclosure for side–by–side mounting of 2 units in a 1U rack space with included rack mounting–ears.
Brand:
Kramer
Part number:
10-8046301090
Specifications
Product Type:
Long-Reach HDBaseT DA
Special Features:
High Performance Distribution, Dual-side Extension, Standard Compatibility, HDMI Signal Transmission, I-EDIDPro™ kramer Intelligent EDID Processing™, LED Indicator, Easy Installation
Maximum Operating Temperature:
+40°C
Applications:
Native AV Signal Re-Extension and Distribution in Large Rooms, Applicable for Corporate, Education, Hospitality, Government Market Segments
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Inputs and Ports
Output Type:
4xHDBT on RJ45 Female Connector
Input Type:
1xHDBT on a RJ45 Female Connector
Power
Input Voltage:
5.2V DC
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
1kg
