VM-4HDCPXL/110V1:4 DVI Distribution Amplifier, 110V
Please sign in so that we can notify you about a reply

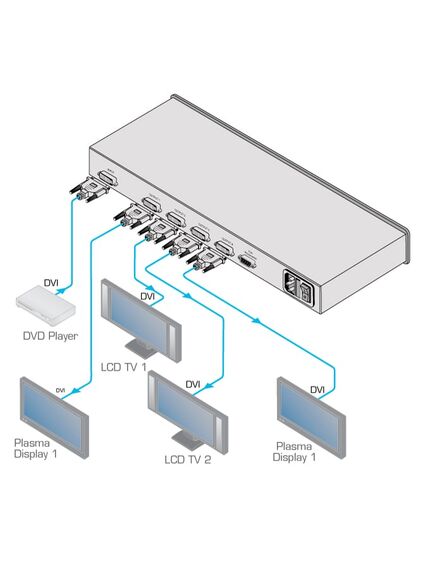

The VM-4HDCPxl is a high-performance distribution amplifier for DVI signals. The unit reclocks and equalizes one input signal and distributes it to four identical outputs.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- Max. Resolution — Up to UXGA & 1080p.
- HDTV Compatible.
- HDCP Compliant.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for DVI source and display systems.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
Brand:
Kramer
Part number:
11-70846110
Specifications
Product Type:
DVI (HDCP) Distribution Amplifier
Version:
110V
Special Features:
Max. Data Rate, Max. Resolution, HDTV Compatible, HDCP Compliant, EDID Pass-through, Standard 19” Rack Mount Size
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Indicator Type:
LED
Includes:
Power Cord, Rack, Ears
Performance
Frequency Rating:
50/60Hz
Inputs and Ports
Output Type:
4xDVI, 1.2Vpp on DVI Molex 24-Pin (F) Connector, DDC Signal 5Vpp (TTL)
Input Type:
1xDVI/1.2Vp-p on a DVI Malex24-Pin (Female) Connector, DDC Signal 5Vp-p (TTL)
Power
Input Voltage:
110V
Dimensions
Width:
43.6cm
Depth:
18.3cm
Height:
4.3cm
Weight:
1.5kg
