VM-8UX 1:8 4K 12G SDI Distribution Amplifier
Please sign in so that we can notify you about a reply

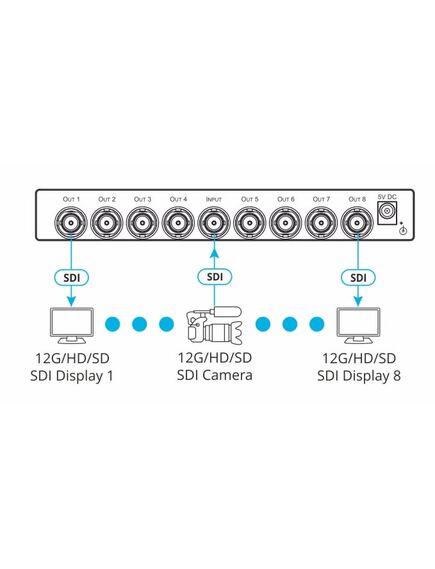

VM−8UX is a compact and high performance 1:8 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to eight identical SDI outputs.
Features
- Reliable Wire Connectivity — Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
- Extended–reach Input Extension — Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals.
Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non–Kramer coaxial cables. - Transmitted Data Rate — Auto–adapting from 270Mbps to 12Gbps data rates.
- Compliance — Complies with SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) standards.
- Max. Resolution — 4K@60Hz (4:2:2) 30bpp.
- SDI Signal Transmission — SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.
- LED Indicators — Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- Easy Installation — Compact DigiTOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting.
Brand:
Kramer
Part number:
10-80460090
Specifications
Product Type:
SDI Distribution Amplifier
Special Features:
Reliable Wire Connectivity, Extended-reach Input Extension, Transmitted Data Rate, Compliance, Max. Resolution, SDI Signal Transmission, LED Indicator, Easy Installation
Maximum Operating Temperature:
+40°C
Applications:
SDI Video Production Studios, Broadcast Studio and Field SDI Video Production Events, Staging and Rental Deployments, Medical Facilities with Highly Reliable Video Deployments
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Mounting Bracket, 2 Male BNC 75Ω Terminators
Performance
Frequency Rating:
60Hz
Inputs and Ports
Output Type:
8xEqualized and Reclocked SMPTE 259M (SD-SDI), 292M (HD SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI), Output 75Ω on BNC Connector
Connector Type:
BNC
Input Type:
1xSMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) Compliant Serial Video Input on a 75Ω BNC Connector
Power
Input Voltage:
5.2V
Standards
Standards Met:
SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI)
Dimensions
Width:
19.cm
Depth:
16.5cm
Height:
2.7cm
Weight:
0.5kg
