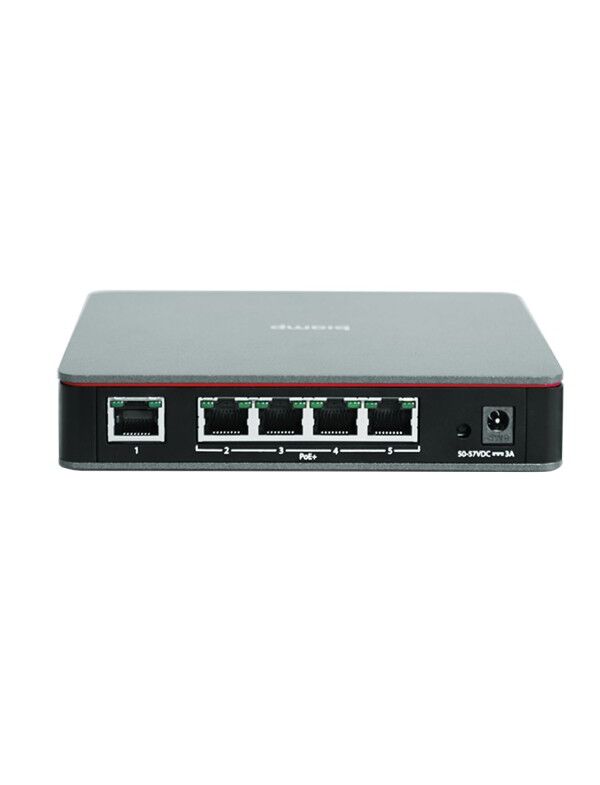

TesiraCONNECT TC-5 Room Connection Device, 5, RJ45
Please sign in so that we can notify you about a reply
TesiraCONNECT™ TC-5 serves as the central connection point for all Biamp® devices in a conference room. It simplifies conferencing installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers, and microphones. Four of the five Gigabit RJ45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ45 port is used for DSP connection or daisychaining TesiraCONNECT devices together. TesiraCONNECT TC-5 eliminates the need for third-party switches;it works out-of-the-box with Tesira products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a crenza in the conference room.
Features- Five 1 Gbps RJ45 ports
- Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
- Up to 4 TesiraCONNECT devices can be daisychained together
- Front panel LEDs indicate port connections, device status, and fault conditions
- Fault reporting and device monitoring supported in SageVue™
- Out-of-the-box compatibility with Tesira conferencing products
- Out-of-the-box compatibility with Tesira conferencing products
- External universal power supply
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Brand:
Biamp
Specifications
Product Type:
Room Connection Device
Mounting Type:
Ceiling Mount/Table Mount/Wall Mount
Power Rating:
<132W
Maximum Operating Temperature:
40°C
Applications:
Conference Room
Minimum Operating Temperature:
0°C
Performance
Frequency Rating:
50/60Hz
Inputs and Ports
Connector Type:
RJ45
Number of Ports:
5
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
FCC Part 15B, UL and C-UL Listed, CE Marked, RoHS Directive, UL 2043
Dimensions
Width:
14.7cm
Depth:
14.7cm
Height:
2.8cm
Weight:
0.7kg
