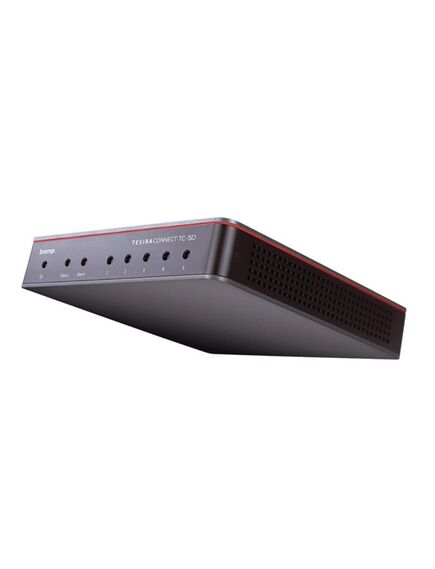

TesiraCONNECT TC-5D Connection Device, 5, RJ45, Ethernet
Please sign in so that we can notify you about a reply
TesiraCONNECT™ TC-5D serves as the central connection point for all Biamp® and Dante™ devices in a conference room. It simplifies installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones as well as 3rd party Dante devices. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT devices together. The TC-5D eliminates the need for third-party switches; it works out-of-the box with Tesira and Dante products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.
Features
- Five 1 Gbps RJ-45 ports
- Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
- Up to 4 TesiraCONNECT devices can be daisy-chained together
- Supports upto 32x32 channels of Dante audio
- Auto-detects media network on each port
- Front panel LEDs indicate port connections, device status, and fault conditions
- Supports Dante Domain Manager
- Dante routing configured in Dante Controller
- Out-of-the-box compatibility with Biamp AVB products and Dante products
- Fault reporting and device monitoring supported in SageVue
- External universal power supply
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Brand:
Biamp
Specifications
Product Type:
Connection Device
Mounting Type:
Table Mount/Wall Mount
Number of Channels:
Applications:
Conference Room
Includes:
Mounting Bracket, 4xScrew, 4xLock Washer, 4xWasher, 4xScrew, 25xZip Ties
Inputs and Ports
Connector Type:
RJ45
Number of Ports:
5
Connectivity
Networking Port:
Ethernet
