DW3020/B Wall Panel Controller, RS-485 Interface, 4-Pin Euro Terminal Block, Black (RAL9005)
Please sign in so that we can notify you about a reply

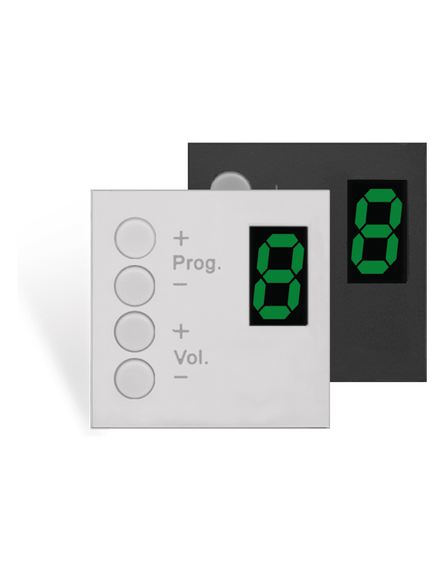

The DW3020 is a flush mount wall panel controller designed to work in combination with the R2 or M2 amplifier. It can be installed in a separate zone, and gives the possibility to select the desired audio source and adjust the volume for the zone that it’s applied to. The connection between the amplifier and the controller is made by using a standard 4-pin terminal block connector. The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
Brand:
Audac
Specifications
Product Type:
Wall Panel Controller
Special Features:
Controller is Made by Using Standard UTP CAT5 Cable
Control Interface Type:
RS-485
Colour:
Black
Chassis Material:
ABS
Applications:
Corporate, Residential
Includes:
Mounting Frame, Cover Plate
Inputs and Ports
Port Type:
4-Pin Euro Terminal Block
Output Port Type:
4xTerminal Block
I/O Interface Type:
RJ45 Connector
Standards
Standards Met:
EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, CE
Dimensions
Width:
4.5cm
Depth:
3.3cm
Height:
4.5cm
Weight:
0.02kg
