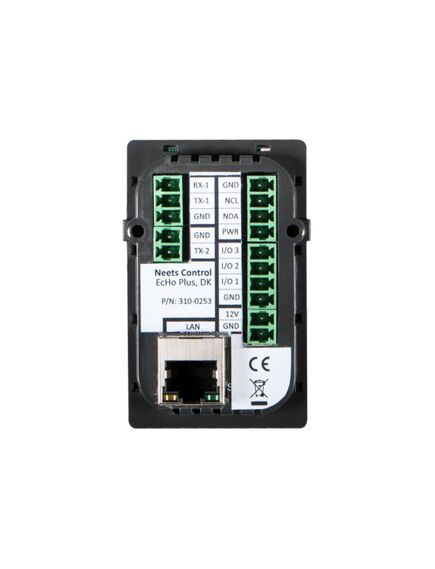

Echo 8DKB 8-Button Control Pad, 8xButton, 5 W, 3 GPIO Port, RS-232/IR
Please sign in so that we can notify you about a reply
The Impera Echo control pad is a compact, highly customizable AV control suitable for wall-mounting or installation in the EasyConnect tabletop cable management solution. It provides a simple and intuitive interface for presentation spaces, learning environments, and conference rooms, regardless of the type of equipment installed. The Echo can be quickly programmed and customized within Project Designer as the needs of the room change over time, making it a very flexible and cost effective control solution.
Features- Supports up to 8 software-configurable buttons
- Includes on-board controller; no external processor required
- 1 bi-directional RS-232/IR port for third party control with feedback
- 1 uni-directional RS-232/IR port for third party control
- 3 GPIO ports
- Mini USB connection for system configuration and maintenance
- Supports email notifications for lamp/filter hours and warnings
- Expansion Bus supports up to 2 additional devices (keypads and port expanders)
- Covered by Biamp Systems’ five-year warranty
Brand:
Biamp
Specifications
Product Type:
8-Button Control Pad
Special Features:
Quickly Programmed and Customized
Control Interface Type:
8xButton
Power Rating:
5W
Maximum Operating Temperature:
40°C
Colour:
Multi (LED)
Applications:
Presentation Spaces, Learning Environments, Conference Rooms, Regardless of the Type of Equipment Installed
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
On-Board Controller
Inputs and Ports
Port Type:
3 GPIO Port
Input Port Type:
8xButton
I/O Interface Type:
RS-232/IR
Power
Voltage Rating:
12V DC
Standards
Standards Met:
CE, RoHS
Dimensions
Width:
5.5cm
Depth:
5.5cm
Height:
5.5cm
Weight:
0.09kg
