RC-2C/EU(W)-86 2–button Control Keypad, UK size, White Design Frame
Please sign in so that we can notify you about a reply

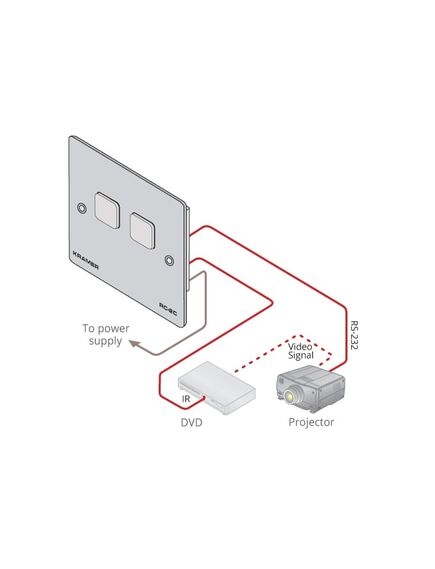

RC−2C is ideal for simple, convenient control of small spaces with serial and IR controlled devices such as projectors and displays.
Features
- Back Lit & Label Capable Buttons — 2 tri–color, tactile feedback, backlit buttons.
- Custom Labeled, Removable Button Caps.
- RS–232 Control Port — Controls a device via serial control protocols.
- IR Control Port — Controls a device via IR control protocols.
- Program Control — Program configuration with Kramer K–Config software — supports up to 4 commands per macro and 4 toggling macros per button.
- Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
- Mounting — In–wall, in standard 1 gang US, EU or UK wall junction boxes.
Brand:
Kramer
Part number:
85-70842290
Specifications
Product Type:
2-Button Control Keypad
Version:
EU 86 Version
Special Features:
Back Lit & Label Capable Button, Custom Labeled, Removable Button Caps, Keypad Lock-Out
Control Interface Type:
2xButton
Colour:
White
Applications:
Stand-Alone Control for Classroom, Standard Multimedia Meeting Rooms
Enclosure Type:
In-Wall, Standard 1 Gang
Includes:
Power Supply, Label Set, Screwdriver
Inputs and Ports
Port Type:
1xRS-232, 1xIR
Power
Voltage Rating:
12V DC
Current Rating:
40mA
Standards
Standards Met:
CE, ISO 9001:2008
Dimensions
Width:
8cm
Depth:
1.3cm
Height:
8cm
Weight:
0.1kg
