Tesira HD-1 Hardware Dialer, 4xContext (Soft) Button Control, 1xRJ45 Port, Black
Please sign in so that we can notify you about a reply

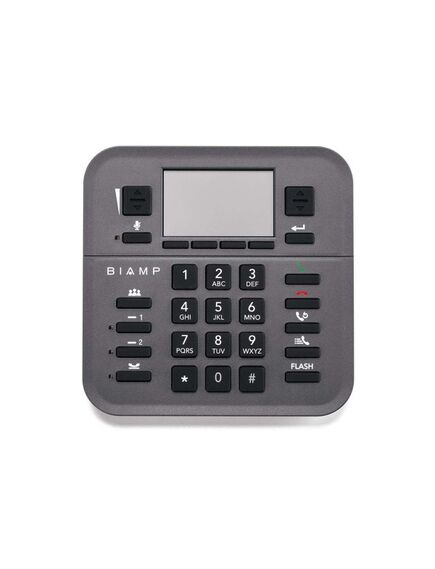

Biamp Systems' all-new Tesira HD-1 dialer is specifically designed to streamline setups and facilitate conferencing with Tesira products - making conferencing installations easier to commission and install, and less complex for end users to operate.
By nearly eliminating the need for programming, this device enables enterprise-level conferencing capabilities without the need to purchase a third-party control system. Compatible with Tesira SERVER and SERVER-IO, as well as both AVB and non-AVB configurations of the TesiraFORTÉ TI and TesiraFORTÉ VI devices, the external dialer combines streamlined industrial design with incredible ease-of-use to seamlessly conduct VoIP or POTS-based calls. Featuring Power over Ethernet (PoE) for extremely simple, single cable installations, the HD-1 includes a traditional 12-button dial pad and 13 additional function buttons, plus four programmable soft buttons.
Features
- Telephony control over Ethernet
- Power over Ethernet (PoE)
- LCD display
- 12-button dial pad
- Four programmable buttons
- 140 programmable speed dial numbers
- Redial, call volume adjustment, mute, hold, and numerous other telephony functions
- Covered by Biamp Systems’ five-year warranty
- Simple, intuitive design
- One-cable installation
- Configurable via Tesira software
- Access to all Tesira telephony functions
- Maintains the look and feel of a traditional enterprise phone
Brand:
Biamp
Specifications
Product Type:
Hardware Dialer
Special Features:
Telephony Control over Ethernet, 12-Button Dial Pad
Control Interface Type:
4xContext Soft Button
Maximum Operating Temperature:
+40°C
Colour:
Black
Humidity:
0 to 95% (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
12-Key Dial Pad
Inputs and Ports
Port Type:
1xRJ45
Input Port Type:
12xKey Standard Dial Pad, 4xContext (Soft) Button, 13xDedicated Button
Output Port Type:
1xRJ45
I/O Interface Type:
RJ45 Connector
Power
Power Supply Port Type:
PoE (IEEE 802.3 at Class 1, 4W)
Standards
Standards Met:
FCC Part 15B (USA), CE Marked (Europe), UL and C-UL (USA and Canada), RCM (Australia), EAC (Eurasian Customs Union), RoHS Directive (Europe), KCC (Korea)
Dimensions
Width:
14.5cm
Depth:
14.5cm
Height:
4cm
Weight:
0.4kg
