WPNETEX Wall Control Panel, 4xButton Control, 1xRJ-45 Port, White
Please sign in so that we can notify you about a reply

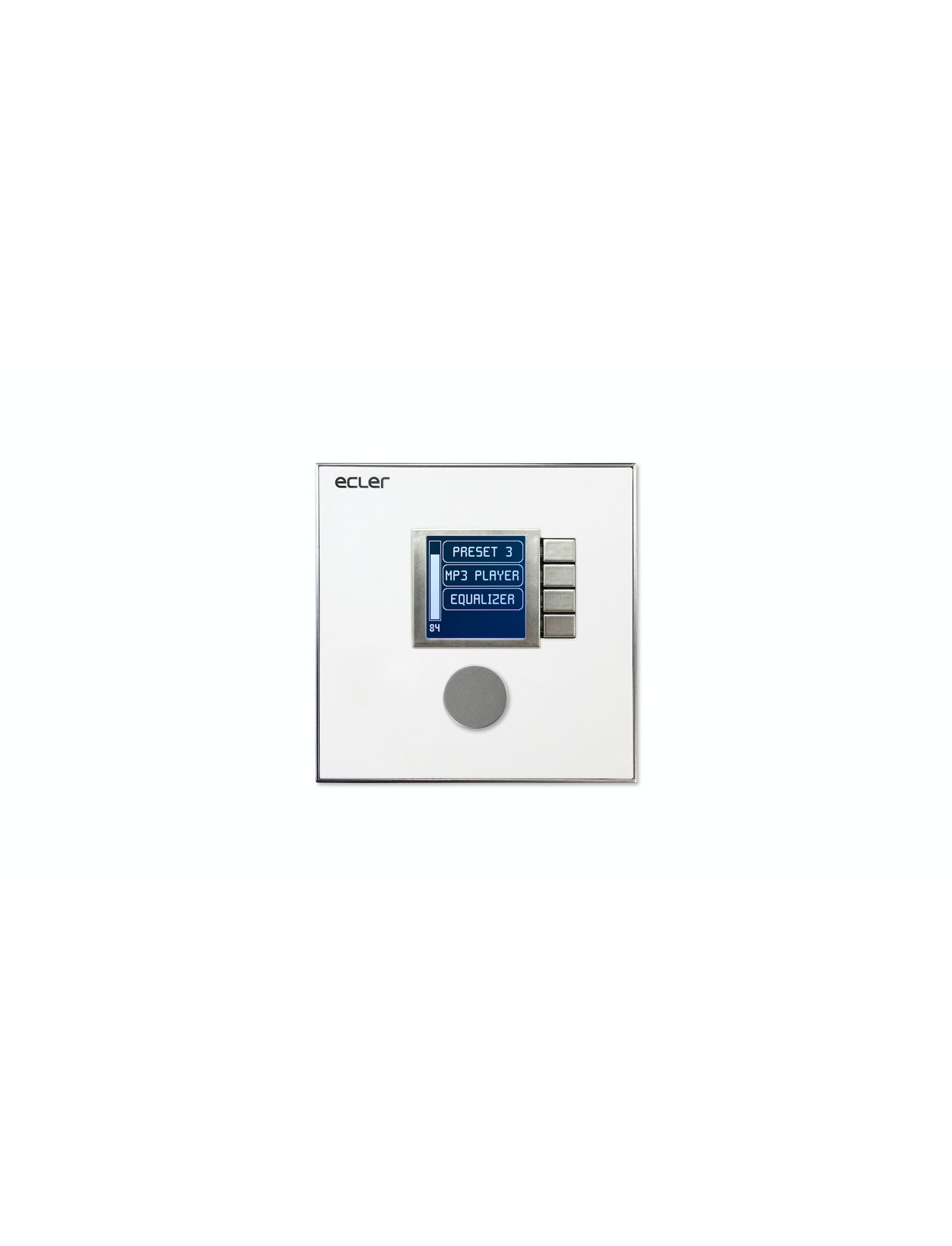

WPNETEX is an EclerNet compatible wall panel, featuring an LCD screen, a digital rotary encoder and 4 control keys. Its end-user control features are volume control, source and preset selection and 3 band EQ functions.
Features
- Remote control panel of Dante™ digital matrixes (MIMO4040CDN/MIMO7272DN)
- Programmable, ready to admit extended control functions
- PoE power or by local power supply
- Ethernet communication interface
- Compatible with wall installation boxes with round shape and internal diameter ≥ 60 mm
- Surface mount box included
Brand:
Ecler
Specifications
Product Type:
Wall Control Panel
Special Features:
Ethernet Communication Interface
Control Interface Type:
4xButton
Power Rating:
1.5W (PoE)
Maximum Operating Temperature:
+40°C
Colour:
White
Applications:
Retail, Education, Corporate, Sports & Wellness, Hospitality
Humidity:
<85% (Operating), <90% (Storage)
Minimum Operating Temperature:
-10°C
Includes:
Frame for Mounting on Single-Mechanism Systems, Screws, Magnet for Cover Removal
Inputs and Ports
Port Type:
1xRJ45
Output Port Type:
1xRJ45
Power
Voltage Rating:
12 to 24V DC
Current Rating:
35mA
Power Supply Port Type:
From PoE: 35mA / 1.6W From Ext Power: 1.5W (WP24-PSU Power Supply Model)
Dimensions
Width:
8.6cm
Depth:
3cm
Height:
8.6cm
Weight:
120g
Shipping Weight:
0.3kg
