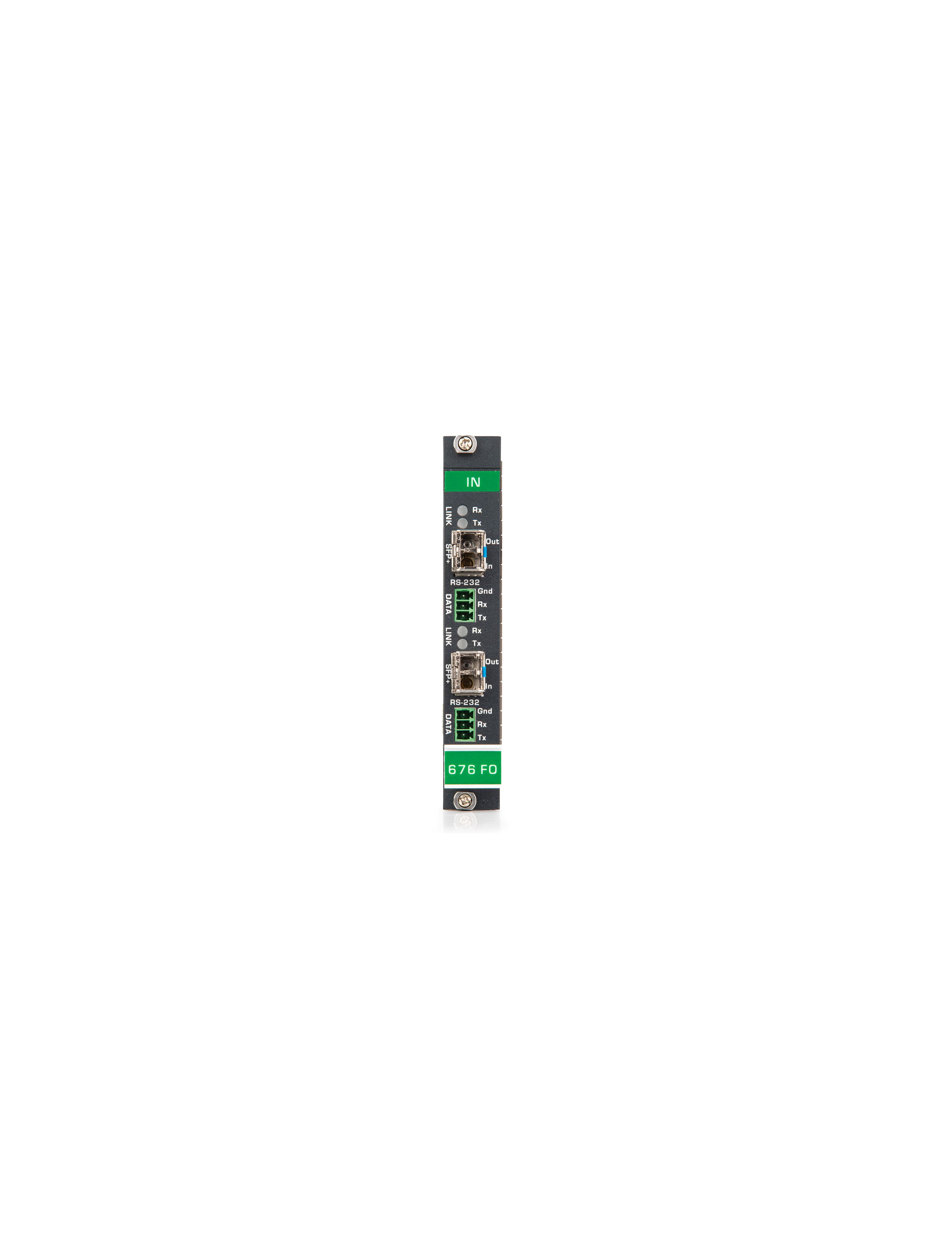

F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card (F-34)
Please sign in so that we can notify you about a reply
F676-IN2-F34 is a high-performance HDMI fiber optic modular matrix input card for ultra-reach extension of 4K@60Hz (4:4:4) HDMI signals. Designed for the VS-34FD modular matrix, F676-IN2-F34 receives the transmitted optical signal from a compatible transmitter and converts it to an HDMI and RS-232 signals. F676-IN2-F34 includes 2 multi-mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceivers, such as single-mode SFP+ transceivers.
Features- High Performance Standard Fiber Extender - HDMI fiber transmitter for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi-mode SFP+ included). Near-zero latency video chroma sub-sampling conversion technology, is employed to auto-adapt above 10G HDMI signals to 10G optical link signal data-rate. Note:To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi-performance OSP SFP+ pluggable optical units
- HDMI Signal Extension - HDCP 2.2 Compliant and supports up to 10.2G (3.4G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS-HD
- I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, to enable data transmission and control of devices
- Cost-Effective Maintenance - Fiber link connection LEDs facilitate easy local troubleshooting
Brand:
Kramer
Part number:
20-70011399
Specifications
Product Type:
Fibre Optic Input Card
Special Features:
Cost-Effective MaintenanCE, Fibre Link Connection LEDs Facilitate Easy Local Troubleshooting
Power Rating:
9W
For Use With:
VS-34FD Modular Matrix
Maximum Operating Temperature:
+40°C
Applications:
Highly Secured and Ultra-Long Extension of Controllable AV Signals For:Governmental/Medical/and Rental and Staging, Point-to-Multipoint Optical Distribution Of Controllable AV Signals Over Large Spaces, Multipoint-to-Multipoint Optical Distribution of Con
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
2mm SFP+ Transceivers
Performance
Resolution:
4K@60Hz 4:4:4
Bandwidth:
18Gbps
Inputs and Ports
Port Type:
2xRS-232 on a 3 pin Terminal Block Connector
Card Slot Type:
HDMI
Standards
Standards Met:
CE, UL, RoHs, WEEE
Dimensions
Length:
24.9cm
Width:
25.5cm
Height:
2cm
Weight:
0.2kg
Shipping Weight:
0.4kg
