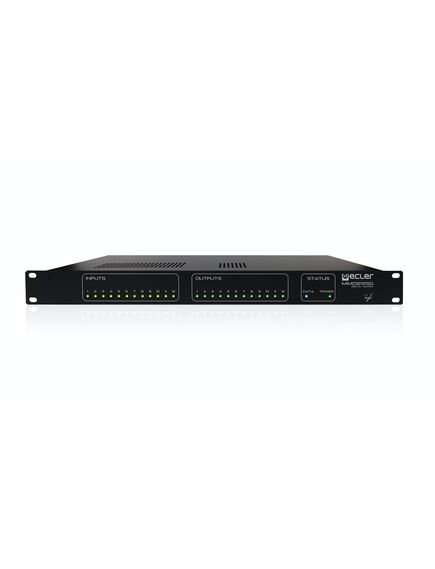

MIMO1212SG Digital Matrix, Terminal Block Input, Terminal Block Output
Please sign in so that we can notify you about a reply
MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix.
Features
- 12x12 digital matrix (not expandable)
- Fully programmable and controllable via EclerNet software
- UCP (User Control Panels) remote control system, compatible with WPmSCREEN and third-party devices, such as computers, tablets, smartphones, etc
- TP-NET protocol compatible, for third-party control systems integration
- DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking (priority & overriding), virtual and physical paging stations management, presets save & recovery, scheduled events triggering, etc
- FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs
- WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).
Brand:
Ecler
Specifications
Product Type:
Digital Matrix
Special Features:
Fully Programmable and Controllable Via Eclernet Software, FREQUENCY SHIFTER Function to Avoid Acoustic Feedback
Maximum Operating Temperature:
+40°C
Applications:
Centralized and Distributed or Hybrid Fixed InstallationxBGM & Paging SolutionxConferencingxP.A. ManagementxInstallations Requiring Remote Total ControlxLive Sound
Humidity:
<85%
Minimum Operating Temperature:
-10°C
Includes:
WpaCNX-CBO Remote Wall Connector, WpaCNX-JRCA Remote Wall Connector, WpaH-AT100 Remote Wall Attenuator, WpaH-AT6 Remote Wall Attenuator, WpaH-SL4 Wall Line Selector
Inputs and Ports
Output Type:
Terminal Block
Input Type:
Terminal Block
Standards
Standards Met:
CE, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 55032:2015 + AMD1 + AMD11, EN 55035:2017, RoHS Compliant, REACH
Dimensions
Length:
48.2cm
Width:
26.6cm
Height:
4.4cm
Weight:
3.2kg
Shipping Weight:
4.5kg
