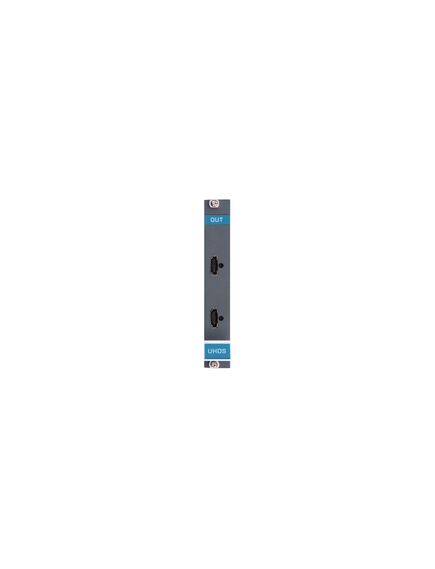

UHDS-OUT2-F16 2-Output 4K Scaler Card (F-16)
Please sign in so that we can notify you about a reply
UHDS-OUT2-F16 is a two-channel HDMI scaler card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The card scales each output signal separately to a set resolution, aspect ratio and color depth according to the native requirements of the screen or to a user setting. The scaling ensures ultra-fast switching by eliminating dependency on the display's scaling capabilities while keeping a constant output signal. In addition, it features immediate (between frame) cut switching between both ports on the same card for live-event switching/scaling.
Features- Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel)
- Max. Resolution - 4K@60Hz (4:2:0)HDMI Support - 3D, Deep Color, x.v.Color, Dolby TrueHD, Dolby Digital Plus, DTS-HD, and 7.1 multi-channel audio
- ARC Support
- HDTV Compatible
- HDCP Compliant
- EDID Capture - Copies and stores the EDID from a display device
- 3D Pass-Through
- Kramer Equalization and re-Klocking Technology
Brand:
Kramer
Part number:
20-70011999
Specifications
Product Type:
HDMI Scaler-Switcher Output Card
Special Features:
HDMI, HDCP, EDID Support, Immediate Frame-to-Frame Switching Support
Power Rating:
22W
For Use With:
VS-1616 Series Modular MultiFormat Digital Matrix Switcher
Maximum Operating Temperature:
+40°C
Applications:
Post Production, Advertising/Shopping Malls and Museums, Conference Room Presentations
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4K@30Hz 4:4:4
Bandwidth:
8.91Gbps (2.97Gbps per Graphic Channel)
Maximum Size Range:
15m 1080pixels 12Bit (Deep Color)
Inputs and Ports
Port Type:
2xHDMI:On Female HDMI Connector
Card Slot Type:
2xHDMI
Standards
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
Dimensions
Length:
13cm
Width:
19cm
Height:
2cm
Weight:
0.2kg
Shipping Weight:
0.3kg
