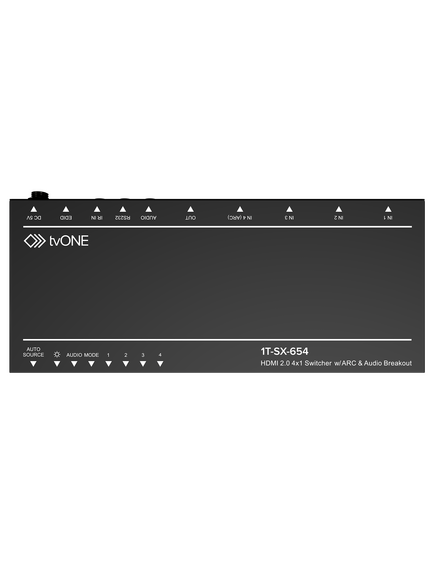

1T-SX-654 4x1 4K60 HDMI 2.0 Ultra-Thin Auto Switcher
Please sign in so that we can notify you about a reply
The 1T-SX-654 is an ultra-thin auto switcher with four HDMI video inputs and one HDMI output with resolution support up to 4Kx2K@60Hz 4:4:4 HDR. Control options include auto-switch mode, which automatically switches to an HDMI input as soon as a new source is connected, or control via the front panel source button, RS-232 or IR (remote control included). Audio functionality includes multi-channel support, de-embedded digital stereo audio to provide an analog output, or an audio return channel (ARC) for transmitting audio back to the HDMI input from the connected display.
Features- Switch any of the four HDMI inputs to a single HDMI output
- Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
- 18Gbps high bandwidth
- HDMI 2.0 and HDCP 2.2 compliant
- Audio return channel (ARC) support
- Ultra-thin (12mm) design for easy install
- Controllable via RS-232 and IR
- Supports Consumer Electronics Control (CEC)
- Advanced EDID management
Brand:
tvONE
Specifications
Product Type:
HDR Ultra-Thin Auto Switcher
Control Port Type:
RS-232
Special Features:
Switch any of the Four HDMI Inputs to a Single HDMI Output, 18Gbps High Bandwidth
Power Rating:
5W
Maximum Operating Temperature:
+55°C
Colour:
Black
Humidity:
10 to 90%
Minimum Operating Temperature:
-10°C
Performance
Resolution:
Up to 4Kx2kpixels@60Hz 4:4:4
Video Bandwidth:
18Gbps
Inputs and Ports
Input Port Type:
4xHDMI 2.0
Output Port Type:
1xHDMI2.0
Power
Voltage Rating:
100 TO 240V AC
Dimensions
Length:
8.9cm
Width:
2cm
Height:
3cm
Weight:
850g
