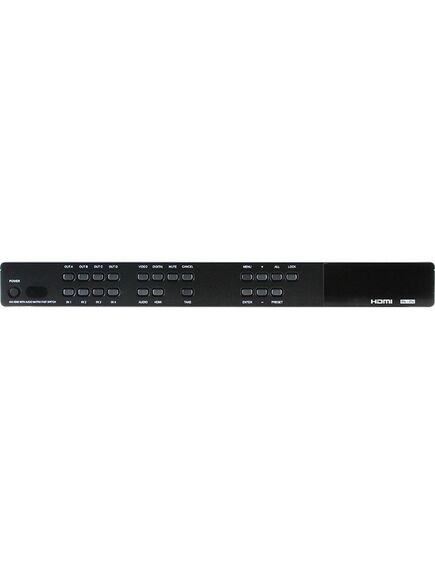

CDPS-U4H4HSA 4x4 4K HDMI Matrix Switcher with Additional Audio Inputs/Outputs
Please sign in so that we can notify you about a reply
The 4 by 4 HDMI UHD and Audio Matrix allows HDMI and audio signals to be routed to and simultaneously displayed on any of its four connected HDMI displays and/or audio output equipment. The addition of audio selection and extension features allows users to utilize both video and audio more efficiently. Fast Switching technology can greatly reduce the time required to swap between inputs. It supports the latest HDMI features such as 4K2K, 3D, 36-bit Deep Colour. All operation and control can be done via on-panel buttons, IR remote control, RS-232 or Ethernet protocol.
Features
- HDMI (with 3D & 4K2K support), HDCP and DVI compliant
- Supports four HDMI inputs and four HDMI outputs
- Supports external audio inputs and outputs for HDMI outputs selection and additional audio extension up to 300m
- Displays any of four High-Definition sources on four HDTV displays simultaneously with Fast Switching technology
- Supports 3D signals
- Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60Hz@YUV420 & 4096x2160@24/50/60Hz@YUV420)
- Supports data rates up to 340Mbps/10.2Gbps and ‘Deep Colour’ up to 1080p 36-bit resolution
- EDID setting can be applied individually or globally on the input ports
- Supports LPCM 2CH, Dolby® Digital 2~5.1CH and DTS 2~5.1CH
- HDMI inputs support ‘Standard’ and ‘Apple®’ HDCP modes
- Supports MUTE function of Video and/or audio on each output port
Brand:
Cypress Technology
Specifications
Product Type:
4 by 4 HDMI with Audio Matrix Fast Switch
Special Features:
Supports Individual EDID or Common EDID, 3DTV Pass-Through
IR Frequency:
30 to 50kHz
Power Rating:
4.7W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Home Theatre/Entertainment, Lecture Room/Hall Presentation, Show Room/Demo Room, Public Commercial Display, Information Board
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4 by 4 HDMI 4Kx2K Matrix with Audio, Remote Control with Battery, Left & Right Rack Ears, 12V/3A DC Power Adaptor, IR Receiver Cable, Operation Manual
Performance
Resolution:
480i to 1080pixels@50Hz/60Hz, 1080pixels@24Hz, 4Kx2K (3840x2160/4096x2160@24Hz/50/60Hz Y420)
Video Bandwidth:
340Mbps to 3Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
4xHDMI, 2xS/PDIF, 1xUSB (Service Only), 1xControl, 1xRS-232, 1xIR
Output Port Type:
4xHDMI, 2xS/PDIF, 2xAudio-CAT
Number of Ports:
4x4
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
3A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE/FCC/UL Certified
Dimensions
Length:
27.8cm
Width:
48.2cm
Height:
5cm
Weight:
2936g
