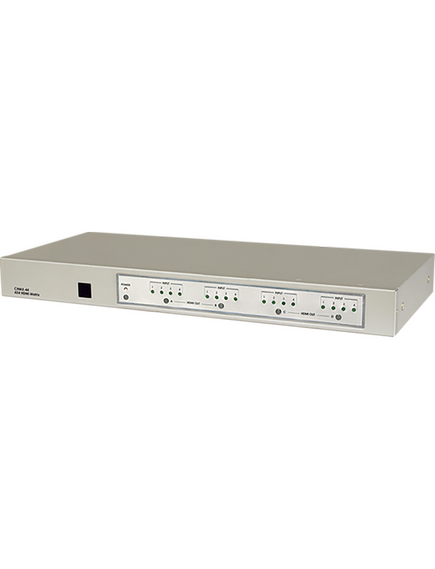

CHMX-44 4x4 HDMI Matrix
Please sign in so that we can notify you about a reply
Cypress CHMX-44 is a high performance HDMI Matrix with remote control. It offers you maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together. Each of the four HDMI sources can be directed to any one of the four outputs, so four displays can show 4 identical or 4 different sources at the same time. CHMX-44 provides a maximum of 16 possible connection scenarios between sources and displays. When HDMI signal progresses through CHMX-44, it is re-timed, level compensated, phase error corrected, and data jitter eliminated, so the output is a regenerated brand new HDMI signal that can run for another 25 meters and can be cascaded.
Features
- HDMI 1.2, HDCP 1.1 and DVI 1.0 Compliant
- HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a well tuned standard HDMI signal
- Input source LED indicators on each output select
- Ideal for home theater integration, conference room and retail stores
- Compatible with all HDMI sources and displays
- PC resplutions support VGA, XGA, SXGA and UXGA (1600x1200)
- HDTV resplutions support 480i, 576i, 480p, 576p, 1080i, and 1080p
- RS-232 control
- IR remote control
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Special Features:
Compatible with All HDMI Sources and Displays, IR Remote Control
Colour:
Black
Chassis Material:
Metal
Includes:
Cypress CHMX-44 HDMI Matrix, 5VDC Power Supply Adaptor, External IR, Remote control, Operation Manual
Performance
Resolution:
PC:VGA, SVGA, XGA, SXGA and UXGA (1600X1200) &HDTV:480i, 576i, 480pixels, 576pixels, 1080i, and 1080pixels
Video Bandwidth:
1.65Gbps (Single Link)
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4-In to 4-Out HDMI Female Port
Output Port Type:
4-in to 4-out HDMI Female Ports
Number of Ports:
4x4
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Dimensions
Length:
17.5cm
Width:
43.8cm
Height:
4.9cm
Weight:
3.1kg
