CMSDI-84 Matrix switcher 8x4 SD/HD/3G-SDI
Please sign in so that we can notify you about a reply

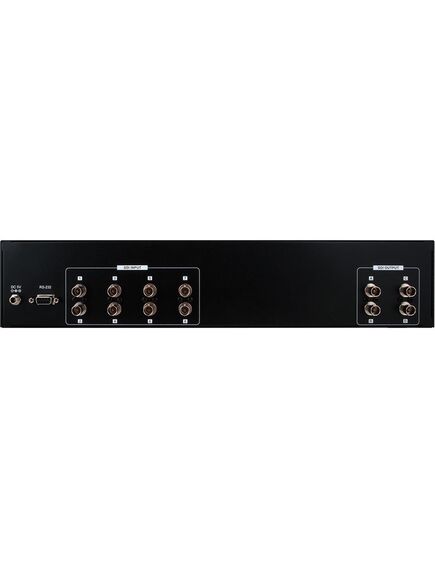

CMSDI-84 – matrix switcher of 8x4 SDI/HD/3G-SDI signals. The device allows you to switch SDI signals from any of eight sources to any of the four outputs or to all outputs simultaneously. It equalizes and reclocks the signal, supports data transmission over long lines without loss of quality at speeds up to 2.970 Gbit/s.
- Allows you to switch between 8 3G-SDI signal sources for display on any of 4 displays in any combination or on all displays simultaneously
- Supports SD-SDI, HD-SDI and 3G-SDI signals
- Supports SMPTE 425M (Levels A and B), SMPTE 424M, SMPTE 292M and SMPTE 259M-C standards
- Data rate: 2.970 Gbps and 2.970/1.001 Gbps, 1.485 Gbps and 1.485/1.001 Gbps, 270 Mbps
- Compensates the frequency response cable and reclocks the signal
- Transmission distance SD-SDI up to 300m, HD-SDI up to 200m and 3G-SDI up to 100m
- Control is carried out using the front panel buttons, using an infrared remote control and via the RS-232 interface
- Power supply, infrared remote control (CR-101) included
Brand:
Cypress Technology
Specifications
Product Type:
SDI Matrix
Special Features:
Signal is Equalized and Re-Clocked, Connect Using Other Units to Extend Your Signal Over Long Distances
Power Rating:
6.5W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Video Broadcasting Switching Display, Professional Video Program Display, Film Studios Program Monitoring, Video Program Switching Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
16 by 4/12 by 4/8 by 4/4 by 4 3G-SDI Matrix, Remote Control (CR-101), 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:
16/8/4xBNC (SD/HD/3G-SDI)
Output Port Type:
4xBNC (SD/HD/3G-SDI)
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE/FCC/UL Certified
Dimensions
Length:
13.2cm
Width:
43.6cm
Height:
9.3cm
Weight:
2380g
