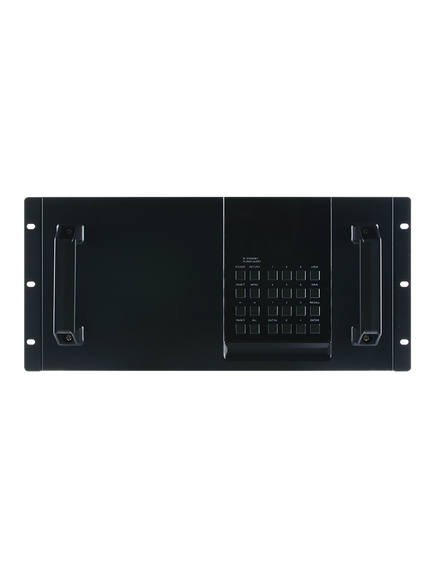

CMSI-3232 32x32 Modular Matrix
Please sign in so that we can notify you about a reply
The 32 by 32 Modular Matrix is designed to allow the switching and distribution of up to 32 source devices to up to 32 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration).
Features
- HDMI, HDCP 1.1 and DVI 1.0 Compliant
- Interchangeable input and output modules
- Input and output module types can be mixed and added in multiples of 8 from 8×8 (1 Input module, 1 Output module) up to 32×32 (4 Input modules, 4 Output modules) with HDMI, DVI, CAT5e/6/7 and VGA (Input only) connection types
- Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p and 4K2K@24/25/30
- Supports pass-through of LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports control of the matrix via on-panel, RS-232, Telnet and WebGUI controls
- Supports 10 available preset settings
- Support 3 EDID modes:Standard, Dynamic and Manual (see Section 6.1 for details)
- Dual removal power supply units
- Supports HDMI cable input and output lengths of up to 15m each way (1080p@8-bit resolution), 10m (1080p@12-bit resolution) or 5m (4K2K@30 resolution)
- Supports CAT5e/6/7 cable input and output lengths of up to 100m (1080p@8-bit/12-bit resolution) or 70m (4K2K@30 resolution) dependent on board capabilities
- DBaseT 5Play™ convergence supports HD Video, HD Audio, PoC, Ethernet and IR/RS-232 Control
- HDBaseT 4Play convergence supports HD Video, HD Audio, PoC and IR/RS-232 Control
- HDBaseT 3Play convergence supports HD Video, HD Audio and IR/ RS-232 Control
Brand:
Cypress Technology
Specifications
Product Type:
32 by 32 Modular Matrix
Special Features:
HDMI, HDCP 1.1 and DVI 1.0 Compliant
Power Rating:
70W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Metal
Applications:
Public Information Display, Educational Demo, Professional Presentation, Advertising Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
32 by 32 Modular Matrix Enclosure (including CPU Control Board and Removeable Dual Power Supplies), Input Module Boards-HDMI, DVI, CAT5e/6/7 or VGA (Optional), Output Module Boards-HDMI, DVI or CAT5e/6/7 (Optional), IR Extender, IR Blaster, Remote Control
Performance
Resolution:
PC:VGA and WUXGA, HDTV:480i to 1080pixels & 4K2K@30Hz
Video Bandwidth:
300MHz/10.2Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:
8xCAT5e/6/7, 1xLAN
Number of Ports:
32x32
Power
Voltage Rating:
110 to 240V AC
Standards
Standards Met:
CE/FCC/UL Certified
Dimensions
Length:
49.4cm
Width:
48.2cm
Height:
23.3cm
Weight:
15000g
