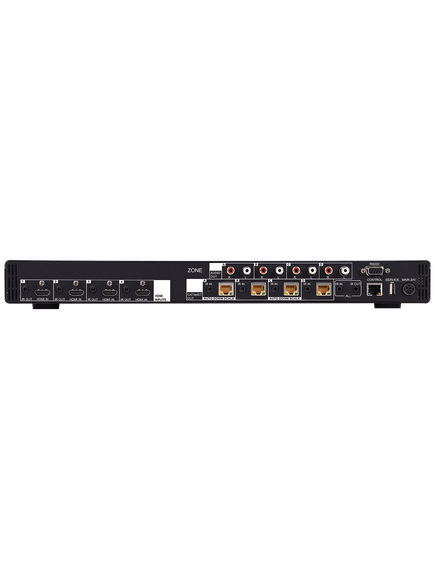

CPLUS-44PLV UHD+ 4x4 HDMI over HDBaseT Matrix with AVLC
Please sign in so that we can notify you about a reply
This 4×4 HDMI over HDBaseT Matrix with AVLC supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio while providing flexible control via IR, RS-232, Telnet or WebGUI.
Features
- HDMI with HDR & 4K@60Hz support, DVI 1.0 compatible
- Routes four HDMI sources to four displays using four HDBaseT outputs
- Supports deep color input and output up to 12-bit
- Supports 10-bit and 12-bit HDR (High Dynamic Range) bypass (Output requires AVLC receiver)
- Supports automatic conversion of 4K@50/60Hz (4:4:4) sources to 4K@50/60Hz (4:2:0) or 1080p50/60 for non-AVLC HDBaseT receivers or if a connected display can’t support the original resolution. Note: 1080p conversion is only available on outputs A & C.
- Supported HDBaseT feature set: HD Video & Audio, PoH (PSE), and Control (Bidirectional IR pass through)
- 4K signals can be transmitted up to 35m via Cat.5e/6 and up to 40m via Cat.6a/7
- Supports pass-through of these standard digital audio formats via HDBaseT: LPCM (up to 8 channels), Bitstream, and HD Bitstream
- High quality Digital to Analog Conversion (DAC) of LPCM 2.0 audio sources for local audio breakout.
- Supports generation of OSD banner information
- Advanced internal and external EDID management with 4 sets of configurable EDID settings
- 1U rack mounted design
- Control via front panel controls, Ethernet (Telnet & WebGUI), RS 232, & IR remote
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Matrix with AVLC
Control Port Type:
1xRS-232 (DE-9), 1xIP Control (RJ45), 1xUSB 2.0 Type A, 5xIR 3.5mm Extender, 5xIR 3.5mm Blaster
Special Features:
Supports Generation Of OSD Banner Information
IR Frequency:
30 to 50kHz
Power Rating:
92W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Steel
Applications:
Full Audio/Video Matrix Systems, Residential AV Matrix Installations, Commercial AV Matrix Installations, Security Systems, University Lecture Hall Systems, Retail Installation System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4x4 4K UHD+ HDMI Over HDBaseT Matrix with AVLC, 1x24V/6.25A DC Power Adapter, 1xPower Cord, 2xIR Extender Cable, 2xIR Blaster Cable, 1xRemote Control (CR-163), 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
10.2Gbps
Signal-to-Noise Ratio:
>100dB@0dBFS
Baud Rate:
19200bps
Crosstalk Level:
<-90dB@10kHz
Inputs and Ports
Input Port Type:
4xHDMI Type A
Output Port Type:
4xCAT5e/6/7, 4xStereo Audio (RCA pairs)
Number of Ports:
4x4
Power
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE/FCC/UL Certified
Dimensions
Length:
27.9cm
Width:
48.2cm
Height:
4.9cm
Weight:
3.642kg
