CPLUS-V4H2HP UHD+ 4x2 HDMI Matrix
Please sign in so that we can notify you about a reply

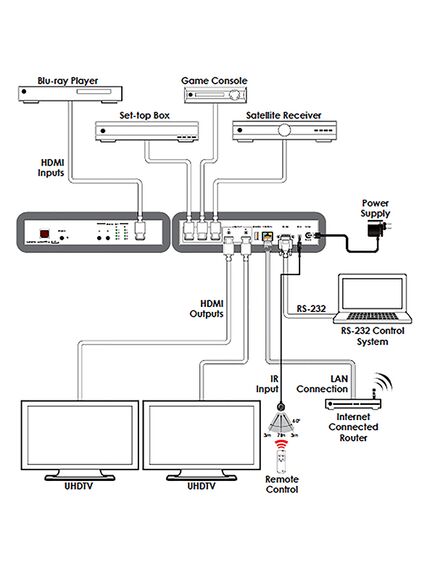

This 4×2 HDMI Matrix allows the customer to route up to four 18Gbps HDMI input signals to any of two 18Gbps HDMI outputs. This unit supports 4K@6Hz (4:4:4), 16-bit Deep Colour, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2. specification. Five pre-defined internal EDIDs and two external EDID options are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.
Features
- Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
- Maximum data rate up to 18Gbps with Deep Colour support up to 16-bit at 18p
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
- Supports EDID management via five pre-defined internal EDIDs and two external EDID options
- Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix with USB Power Supply
Control Port Type:
1xIR Extender (3.5mm), 1xRS-232 (9-Din Sub), 1xIP Control (RJ45)
Special Features:
4 Matrix Routing, 2 HDMI Output, 16bits Deep Colour, EDID Management, Multiple Control Output
IR Frequency:
30 to 50kHz
Power Rating:
7.106W
Colour:
Black
Chassis Material:
Metal
Performance
Resolution:
4096x2160 pixels@60Hz
Video Bandwidth:
18Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
4xHDMI Type A
Output Port Type:
2xHDMI Type-A
Number of Ports:
10
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
2.6A DC
Standards
Standards Met:
US/EU, CE/FCC/UL
Dimensions
Length:
11.2cm
Width:
24cm
Height:
4.8cm
Weight:
796g
