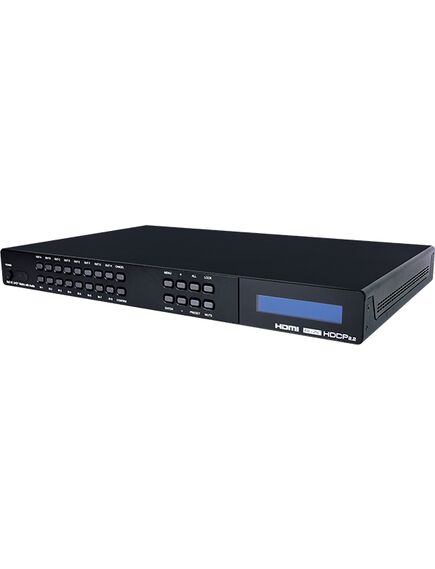

CPLUS-V8H8HPA UHD+ 8x8 HDMI Matrix with Audio Output
Please sign in so that we can notify you about a reply

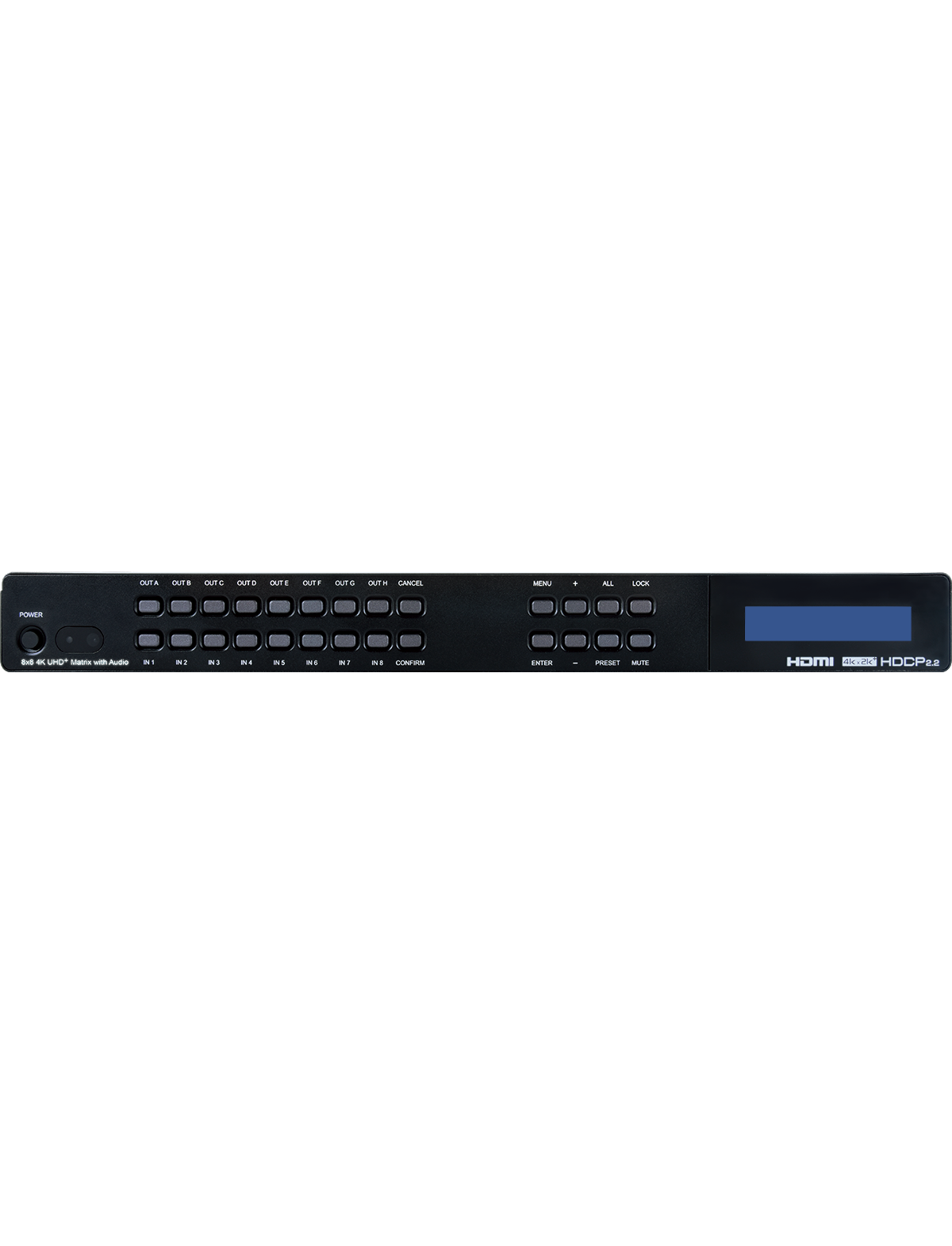

This 8 by 8 Matrix has the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely switch between them. The unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as supports for 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select among built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems. There are eight audio outputs can pair with HDMI output individually. The builtin OSD has the ability to display user editable general information text so each output can display up to 2 lines of customized text on top of the video source in the color of your choice. The unit provides an intuitive set of front panel controls with an LCD as well as RS-232, Telnet, WebGUI, and IR remote control options.
Features
- Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (600MHz) 4K UHD support
- Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs
- Eight Audio output ports can pair with eight HDMI outputs individually
- OSD with user customizable information text
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix with Audio Output
Control Port Type:
1xControl (RJ45), 1xRS-232 (DB9), 1xIR IN (3.5mm)
Special Features:
Eight Audio Output Ports Can Pair with Eight HDMI Output Individually, OSD with User Customizable Information Text
IR Frequency:
38kHz
Power Rating:
70W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Steel
Applications:
Smart Home Control, Control Center, Function Room, Product Showroom, Ball Room
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xUHD+ 8x8 Matrix with Audio Output, 1x24V/3.75A DC Power Adapter, 1xRemote Control (CR-177), 1xRackmount Ears (Set of 2), 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Signal-to-Noise Ratio:
>105dB@0dBFS
Baud Rate:
19200bps
Crosstalk Level:
<-60dB@10kHz
Inputs and Ports
Input Port Type:
8xHDMI
Output Port Type:
8xHDMI, 8xUnbalanced Stereo (3.5mm)
Number of Ports:
8x8
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
CE/FCC/UL Certified
Dimensions
Length:
27.4cm
Width:
43.8cm
Height:
4.9cm
Weight:
3600g
