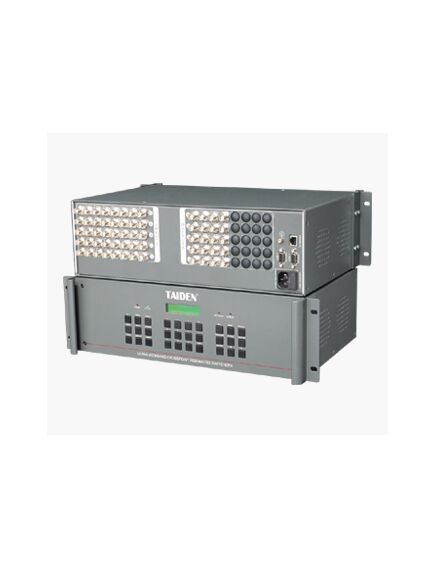

TMX-0804HTK High Definition Video Tracking Matrix Switcher (8x4 RGBHV Ultra Wideband Matrix Switcher
Please sign in so that we can notify you about a reply
Video tracking system cooperates with TAIDEN conference system: immediate display of speaker’s image, appropriate for video recording. Unique frozen image and OSD functions ensure perfect automatic video tracking.
Features
- Video interface; BNC×5 female
- Fully loaded video bandwidth: 450 MHz
- Typical switching speed: 25 ns
- Typical propagation delay: 5 ns
- Compatible with RGBHV, RGBs, RGsB, RsGsBs, HDTV, component video, S-video and composite video
- The latest RGB switch chip is used
- Input synchronization signal detection function
- Gain compensation and synchronization signal AGC to guarantee faster switching with no blinking and glitch
- RS-232 control, supporting RS-232 protocols
- One RS-422/485 control port with built-in professional camera control protocols, a variety of professional cameras like TAIDEN HCS-3316HDB, SONY, PELCO and Panasonic can be controlled
- One RS-232 control port for connection with TAIDEN conference system
- Power-off protection for scene status
- LCD to display real-time operation
- Front panel button control , easy to switch manually
Brand:
Taiden
Specifications
Product Type:
High Definition Video Tracking Matrix Switcher
Control Port Type:
RS-422/485, RS-232
Special Features:
Input Synchronization Signal Detection Function, Power-Off Protection, LCD to Display Real-Time Operation
Colour:
Grey
Performance
Video Bandwidth:
450MHz
Inputs and Ports
Number of Ports:
8x4
